Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

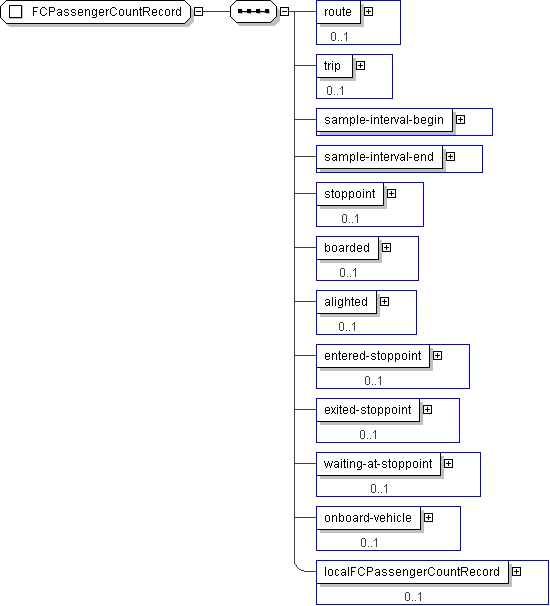

Name	FCPassengerCountRecord
Used by (from the same schema document)	Complex Type FcPassengerData
Abstract	no

XML Instance Representation

<...>

<route> SCHRouteIden </route> [0..1]

<trip> SCHTripIden </trip> [0..1]

<sample-interval-begin> CPT-DateTime </sample-interval-begin> [1]

<sample-interval-end> CPT-DateTime </sample-interval-end> [1]

<stoppoint> CPTStoppointIden </stoppoint> [0..1]

<boarded> CPT-GenericCounter </boarded> [0..1]

<alighted> CPT-GenericCounter </alighted> [0..1]

<entered-stoppoint> CPT-GenericCounter </entered-stoppoint> [0..1]

<exited-stoppoint> CPT-GenericCounter </exited-stoppoint> [0..1]

<waiting-at-stoppoint> CPT-GenericCounter </waiting-at-stoppoint> [0..1]

<onboard-vehicle> CPT-GenericCounter </onboard-vehicle> [0..1]

<localFCPassengerCountRecord> local:FCPassengerCountRecord </localFCPassengerCountRecord> [0..1]

</...>

Schema Component Representation

<xs:complexType name="FCPassengerCountRecord">

<xs:sequence>

<xs:element name="route" type=" SCHRouteIden " minOccurs="0"/>

<xs:element name="trip" type=" SCHTripIden " minOccurs="0"/>

<xs:element name="sample-interval-begin" type=" CPT-DateTime "/>

<xs:element name="sample-interval-end" type=" CPT-DateTime "/>

<xs:element name="stoppoint" type=" CPTStoppointIden " minOccurs="0"/>

<xs:element name="boarded" type=" CPT-GenericCounter " minOccurs="0"/>

<xs:element name="alighted" type=" CPT-GenericCounter " minOccurs="0"/>

<xs:element name="entered-stoppoint" type=" CPT-GenericCounter " minOccurs="0"/>

<xs:element name="exited-stoppoint" type=" CPT-GenericCounter " minOccurs="0"/>

<xs:element name="waiting-at-stoppoint" type=" CPT-GenericCounter " minOccurs="0"/>

<xs:element name="onboard-vehicle" type=" CPT-GenericCounter " minOccurs="0"/>

<xs:element name="localFCPassengerCountRecord" type=" local:FCPassengerCountRecord " minOccurs="0"/>

</xs:sequence>

</xs:complexType>
