Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

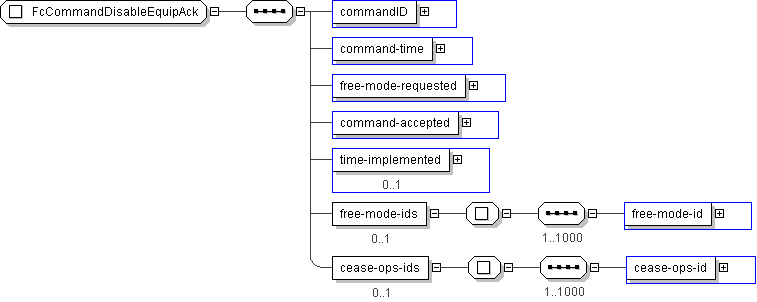

Name	FcCommandDisableEquipAck
Used by (from the same schema document)	Element fcCommandDisableEquipAck
Abstract	no

XML Instance Representation

<...>

<commandID> CPT-CommandID </commandID> [1]

<command-time> CPT-DateTime </command-time> [1]

<free-mode-requested> CPT-Boolean </free-mode-requested> [1]

<command-accepted> CPT-Boolean </command-accepted> [1]

<time-implemented> CPT-DateTime </time-implemented> [0..1]

<free-mode-ids> [0..1]
Start Sequence [1..1000]

<free-mode-id> CPT-SerialNumber </free-mode-id> [1]

End Sequence
</free-mode-ids>

<cease-ops-ids> [0..1]
Start Sequence [1..1000]

<cease-ops-id> CPT-SerialNumber </cease-ops-id> [1]

End Sequence
</cease-ops-ids>

</...>

Schema Component Representation

<xs:complexType name="FcCommandDisableEquipAck">

<xs:sequence>

<xs:element name="commandID" type=" CPT-CommandID "/>

<xs:element name="command-time" type=" CPT-DateTime "/>

<xs:element name="free-mode-requested" type=" CPT-Boolean "/>

<xs:element name="command-accepted" type=" CPT-Boolean "/>

<xs:element name="time-implemented" type=" CPT-DateTime " minOccurs="0"/>

<xs:element name="free-mode-ids" minOccurs="0">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="1000">

<xs:element name="free-mode-id" type=" CPT-SerialNumber "/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="cease-ops-ids" minOccurs="0">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="1000">

<xs:element name="cease-ops-id" type=" CPT-SerialNumber "/>

</xs:sequence>

</xs:complexType>

</xs:element>

</xs:sequence>

</xs:complexType>
