Documentation for ATIS-Draft-03-00-79

Simple Type: FC-ComponentEventType

[Table of contents]

Super-types: None
Sub-types: None
Name FC-ComponentEventType
Used by (from the same schema document) Complex Type FCComponentEventInstance
Content
  • Union of following types:
    • Locally defined type:
      • Base XSD Type: unsignedInt
      • 1 <= value <= 56
    • Locally defined type:
      • Base XSD Type: string
      • value comes from list: {'voltage dropout'|'voltage restored'|'probe started'|'probe completed'|'cashbox removed'|'cashbox restored'|'cashbox door timeout'|'cashbox opened is'|'insufficient fare'|'coinbox 75 full'|'coinbox full'|'currencybox 75 full'|'currencybox under 75'|'currencybox full'|'cardpassbox 75 full'|'cardpassbox under 75'|'cardpassbox full'|'coin dejam'|'farebox manual bypass'|'farebox automatic'|'pass jam'|'pass jam cleared'|'pass currency jam'|'maintenance access is'|'maintenance access oos'|'alarm module failure'|'battery failure'|'battery low'|'cardcapturebin 75 full'|'cardcapturebin full'|'card stock 1 low'|'card stock 1 out'|'card stock 2 low'|'card stock 2 out'|'card stock 3 low'|'card stock 3 out'|'card stock 4 low'|'card stock 4 out'|'card stock 5 low'|'card stock 5 out'|'card stock 6 low'|'card stock 6 out'|'clock error'|'coin acceptor fault'|'communications loss'|'maintenance door open'|'maintenance door closed'|'motion sensor alarm on'|'power reset'|'communications lost'|'receipt low'|'receipt out'|'credit debit failure'|'gate failure'|'banknote validation failure'|'breakin alarm'}
    • Locally defined type:
      • Base XSD Type: unsignedInt
      • 128 <= value <= 255
    • Locally defined type:
      • Base XSD Type: string
      • value comes from list: {'insert-local-values-here'}
Application Data voltage dropout (1) -- voltage dropout voltage restored (2) -- voltage restored probe started (3) -- probe started probe completed (4) -- probe completed cashbox removed (5) -- cashbox removed cashbox restored (6) -- cashbox restored cashbox door timeout (7) -- cashbox door timeout cashbox opened is (8) -- cashbox opened in service insufficient fare (9) -- insufficient fare accepted coinbox 75 full (10) -- coinbox 75% full coinbox full (11) -- coinbox full currencybox 75 full (12) -- currency box 75% full currencybox under 75 (13) -- currency box less than 75% full currencybox full (14) -- currency box full cardpassbox 75 full (15) -- card/pass box 75% full cardpassbox under 75 (16) -- card/pass box less than 75% full cardpassbox full (17) -- card/pass box full coin dejam (18) -- coin de-jam operated farebox manual bypass (19) -- farebox set in manual bypass farebox automatic (20) -- farebox reset to automatic mode pass jam (21) -- pass/transfer jam pass jam cleared (22) -- pass/transfer jam cleared pass currency jam (23) -- pass currency jam maintenance access is (24) -- maintenance access - in service maintenance access oos (25) -- maintenance access - out of service alarm module failure (26) -- alarm module failure battery failure (27) -- battery failure battery low (28) -- battery low cardcapturebin 75 full (29) -- card capture bin 75% full cardcapturebin full (30) -- -card capture bin full card stock 1 low (31) -- Fare card stock type 1 is low card stock 1 out (32) -- Fare card stock type 1 is out card stock 2 low (33) -- Fare card stock type 2 is low card stock 2 out (34) -- Fare card stock type 2 is out card stock 3 low (35) -- Fare card stock type 3 is low card stock 3 out (36) -- Fare card stock type 3 is out card stock 4 low (37) -- Fare card stock type 4 is low card stock 4 out (38) -- Fare card stock type 4 is out card stock 5 low (39) -- Fare card stock type 5 is low card stock 5 out (40) -- Fare card stock type 5 is out card stock 6 low (41) -- Fare card stock type 6 is low card stock 6 out (42) -- Fare card stock type 6 is out clock error (43) -- Equipment controller board clock error coin acceptor fault (44) -- Coin acceptor fault communications loss (45) -- Loss of communications with local devices maintenance door open (46) -- Maintenance door open maintenance door closed (47) -- Maintenance door closed motion sensor alarm on (48) -- Motion sensor alarm triggered power reset (49) -- Power reset communications lost (50) -- Local station communications lost receipt low (51) -- Receipt low receipt out (52) -- Receipt out credit debit failure (53) -- credit/debit failure (out of service) gate failure (54) -- gate failure (turnstile and parking) banknote validation failure (55) -- bank note validation failure breakin alarm (56) -- 56-127 reserved -- 128-255 local content

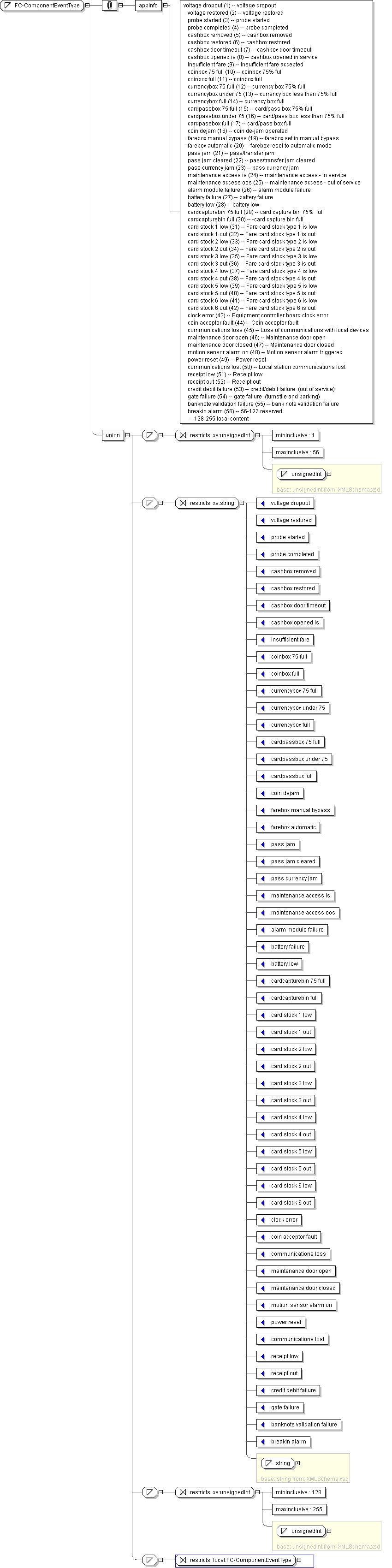

Diagram
h1537890402
Schema Component Representation
<xs:simpleType name="FC-ComponentEventType">
<xs:union>
<xs:simpleType>
<xs:restriction base=" xs:unsignedInt ">
<xs:minInclusive value="1"/>
<xs:maxInclusive value="56"/>
</xs:restriction>
</xs:simpleType>
<xs:simpleType>
<xs:restriction base=" xs:string ">
<xs:enumeration value="voltage dropout"/>
<xs:enumeration value="voltage restored"/>
<xs:enumeration value="probe started"/>
<xs:enumeration value="probe completed"/>
<xs:enumeration value="cashbox removed"/>
<xs:enumeration value="cashbox restored"/>
<xs:enumeration value="cashbox door timeout"/>
<xs:enumeration value="cashbox opened is"/>
<xs:enumeration value="insufficient fare"/>
<xs:enumeration value="coinbox 75 full"/>
<xs:enumeration value="coinbox full"/>
<xs:enumeration value="currencybox 75 full"/>
<xs:enumeration value="currencybox under 75"/>
<xs:enumeration value="currencybox full"/>
<xs:enumeration value="cardpassbox 75 full"/>
<xs:enumeration value="cardpassbox under 75"/>
<xs:enumeration value="cardpassbox full"/>
<xs:enumeration value="coin dejam"/>
<xs:enumeration value="farebox manual bypass"/>
<xs:enumeration value="farebox automatic"/>
<xs:enumeration value="pass jam"/>
<xs:enumeration value="pass jam cleared"/>
<xs:enumeration value="pass currency jam"/>
<xs:enumeration value="maintenance access is"/>
<xs:enumeration value="maintenance access oos"/>
<xs:enumeration value="alarm module failure"/>
<xs:enumeration value="battery failure"/>
<xs:enumeration value="battery low"/>
<xs:enumeration value="cardcapturebin 75 full"/>
<xs:enumeration value="cardcapturebin full"/>
<xs:enumeration value="card stock 1 low"/>
<xs:enumeration value="card stock 1 out"/>
<xs:enumeration value="card stock 2 low"/>
<xs:enumeration value="card stock 2 out"/>
<xs:enumeration value="card stock 3 low"/>
<xs:enumeration value="card stock 3 out"/>
<xs:enumeration value="card stock 4 low"/>
<xs:enumeration value="card stock 4 out"/>
<xs:enumeration value="card stock 5 low"/>
<xs:enumeration value="card stock 5 out"/>
<xs:enumeration value="card stock 6 low"/>
<xs:enumeration value="card stock 6 out"/>
<xs:enumeration value="clock error"/>
<xs:enumeration value="coin acceptor fault"/>
<xs:enumeration value="communications loss"/>
<xs:enumeration value="maintenance door open"/>
<xs:enumeration value="maintenance door closed"/>
<xs:enumeration value="motion sensor alarm on"/>
<xs:enumeration value="power reset"/>
<xs:enumeration value="communications lost"/>
<xs:enumeration value="receipt low"/>
<xs:enumeration value="receipt out"/>
<xs:enumeration value="credit debit failure"/>
<xs:enumeration value="gate failure"/>
<xs:enumeration value="banknote validation failure"/>
<xs:enumeration value="breakin alarm"/>
</xs:restriction>
</xs:simpleType>
<xs:simpleType>
<xs:restriction base=" xs:unsignedInt ">
<xs:minInclusive value="128"/>
<xs:maxInclusive value="255"/>
</xs:restriction>
</xs:simpleType>
<xs:simpleType>
<xs:restriction base=" local:FC-ComponentEventType "/>
</xs:simpleType>
</xs:union>
</xs:simpleType>
