Documentation for ATIS-Draft-03-00-79

Simple Type: CPT-ErrorCode

[Table of contents]

Super-types: None
Sub-types: None
Name CPT-ErrorCode
Used by (from the same schema document) Complex Type CcPTVTripResponse , Complex Type CptPushFailure , Complex Type CptSubErrorNotice
Content
  • Union of following types:
    • Locally defined type:
      • Base XSD Type: unsignedInt
      • 1 <= value <= 62
    • Locally defined type:
      • Base XSD Type: string
      • value comes from list: {'nullData'|'intentionalBlank'|'deletedByDevice'|'msgUnavailable'|'illegalCalc'|'deviceMalfunction'|'msgExpired'|'suppressedSecurity'|'suppressedPrivacy'|'unspecified'|'vehicle'|'unknownFile'|'receiverCantProcess'|'incompleteMessage'|'fileCorrupt'|'invalidPriority'|'invalidFrequency'|'invalidMode'|'invalidDeliveryVerification'|'cantDecrypt'|'accessDenied'|'excessLatency'|'invalidMsgRef'|'timeExpired'|'dataUnavailable'|'dataExpired'|'valueOutOfRange'}
    • Locally defined type:
      • Base XSD Type: unsignedInt
      • 128 <= value <= 255
    • Locally defined type:
      • Base XSD Type: string
      • value comes from list: {'insert-local-values-here'}
Application Data nullData (1) intentionalBlank (2) deletedByDevice (3) msgUnavailable (4) illegalCalc (5) deviceMalfunction (6) msgExpired (7) suppressedSecurity (8) suppressedPrivacy (9) unspecified (10) vehicle (11) unknownFile (12) receiverCantProcess (13) incompleteMessage (14) fileCorrupt (15) invalidPriority (51) invalidFrequency (52) invalidMode (53) invalidDeliveryVerification (54) cantDecrypt (55) accessDenied (56) excessLatency (57) invalidMsgRef (58) timeExpired (59) dataUnavailable (60) dataExpired (61) valueOutOfRange (62) -- 63-127 reserved 128-255 local use

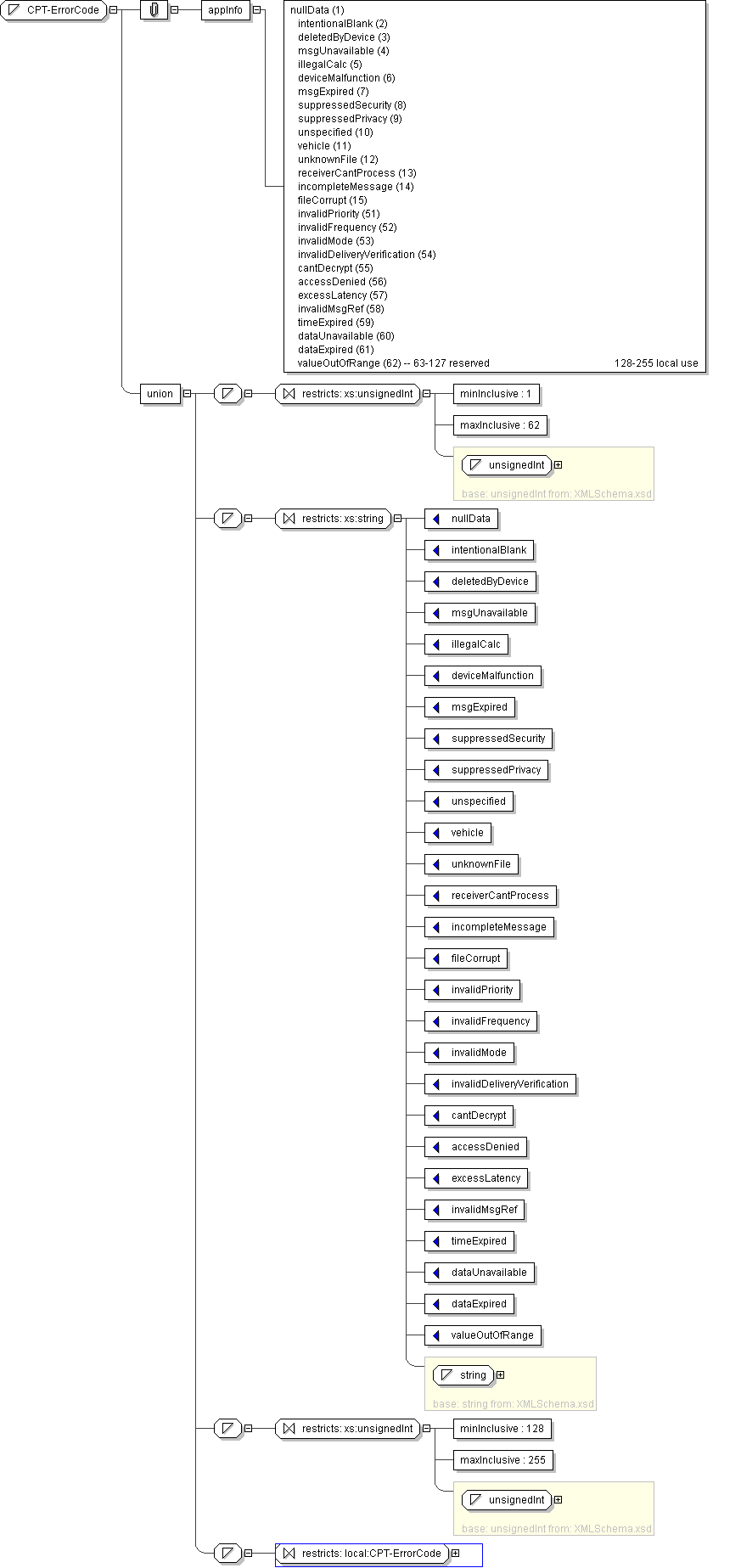

Diagram
h1373957866
Schema Component Representation
<xs:simpleType name="CPT-ErrorCode">
<xs:union>
<xs:simpleType>
<xs:restriction base=" xs:unsignedInt ">
<xs:minInclusive value="1"/>
<xs:maxInclusive value="62"/>
</xs:restriction>
</xs:simpleType>
<xs:simpleType>
<xs:restriction base=" xs:string ">
<xs:enumeration value="nullData"/>
<xs:enumeration value="intentionalBlank"/>
<xs:enumeration value="deletedByDevice"/>
<xs:enumeration value="msgUnavailable"/>
<xs:enumeration value="illegalCalc"/>
<xs:enumeration value="deviceMalfunction"/>
<xs:enumeration value="msgExpired"/>
<xs:enumeration value="suppressedSecurity"/>
<xs:enumeration value="suppressedPrivacy"/>
<xs:enumeration value="unspecified"/>
<xs:enumeration value="vehicle"/>
<xs:enumeration value="unknownFile"/>
<xs:enumeration value="receiverCantProcess"/>
<xs:enumeration value="incompleteMessage"/>
<xs:enumeration value="fileCorrupt"/>
<xs:enumeration value="invalidPriority"/>
<xs:enumeration value="invalidFrequency"/>
<xs:enumeration value="invalidMode"/>
<xs:enumeration value="invalidDeliveryVerification"/>
<xs:enumeration value="cantDecrypt"/>
<xs:enumeration value="accessDenied"/>
<xs:enumeration value="excessLatency"/>
<xs:enumeration value="invalidMsgRef"/>
<xs:enumeration value="timeExpired"/>
<xs:enumeration value="dataUnavailable"/>
<xs:enumeration value="dataExpired"/>
<xs:enumeration value="valueOutOfRange"/>
</xs:restriction>
</xs:simpleType>
<xs:simpleType>
<xs:restriction base=" xs:unsignedInt ">
<xs:minInclusive value="128"/>
<xs:maxInclusive value="255"/>
</xs:restriction>
</xs:simpleType>
<xs:simpleType>
<xs:restriction base=" local:CPT-ErrorCode "/>
</xs:simpleType>
</xs:union>
</xs:simpleType>
