Documentation for ATIS-Draft-03-00-79

Element: fcReportReconcileCashbox

[Table of contents]

Name fcReportReconcileCashbox
Type FcReportReconcileCashbox
Nillable no
Abstract no

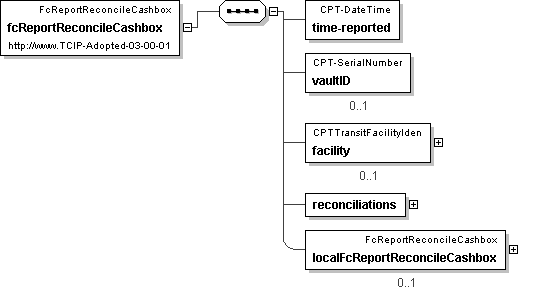

Logical Diagram
h1766694022 h-1570011475 h-1595229821
XML Instance Representation
<fcReportReconcileCashbox>
<time-reported> CPT-DateTime </time-reported> [1]
<vaultID> CPT-SerialNumber </vaultID> [0..1]
<facility> CPTTransitFacilityIden </facility> [0..1]
<reconciliations> [1]
Start Sequence [1..10000]
<reconciliation> FCCashBoxReconciliation </reconciliation> [1]
End Sequence
</reconciliations>
<localFcReportReconcileCashbox> local:FcReportReconcileCashbox </localFcReportReconcileCashbox> [0..1]
</fcReportReconcileCashbox>

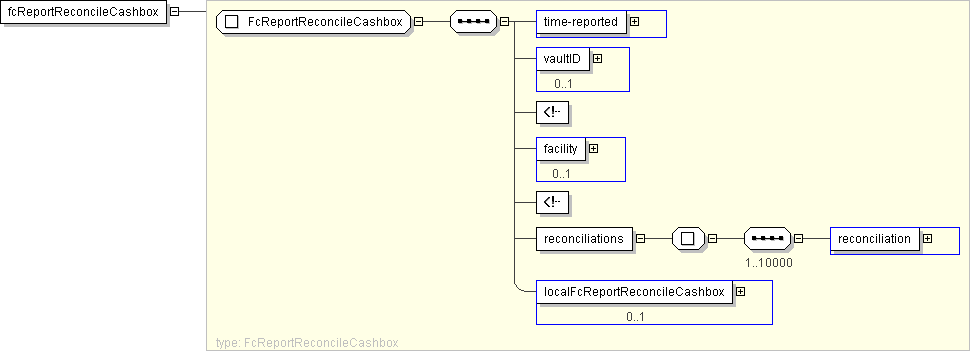

Diagram
h1272267302 h-565816472 h2133900120 h640672729 h1129313920
Schema Component Representation
<xs:element name="fcReportReconcileCashbox" type=" FcReportReconcileCashbox "/>
