Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

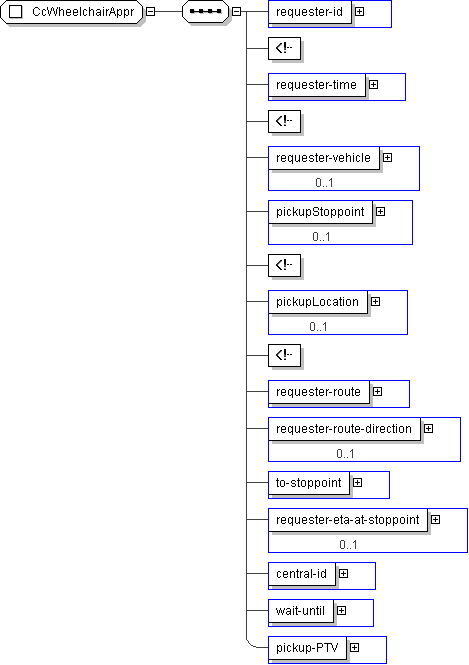

Name	CcWheelchairAppr
Used by (from the same schema document)	Element ccWheelchairAppr
Abstract	no

XML Instance Representation

<...>

<requester-id> CC-TravelerRequestID </requester-id> [1]

<requester-time> CPT-DateTime </requester-time> [1]

<requester-vehicle> CPTVehicleIden </requester-vehicle> [0..1]

<pickupStoppoint> CPTStoppointIden </pickupStoppoint> [0..1]

<pickupLocation> lrms:GeoLocation </pickupLocation> [0..1]

<requester-route> SCHRouteIden </requester-route> [1]

<requester-route-direction> lrms:Direction </requester-route-direction> [0..1]

<to-stoppoint> CPTStoppointIden </to-stoppoint> [1]

<requester-eta-at-stoppoint> CPT-DateTime </requester-eta-at-stoppoint> [0..1]

<central-id> CC-TravelerRequestID </central-id> [1]

<wait-until> CPT-DateTime </wait-until> [1]

<pickup-PTV> CPTVehicleIden </pickup-PTV> [1]

</...>

Schema Component Representation

<xs:complexType name="CcWheelchairAppr">

<xs:sequence>

<xs:element name="requester-id" type=" CC-TravelerRequestID "/>

<-- assigned by requester entity -->

<xs:element name="requester-time" type=" CPT-DateTime "/>

<-- time requested -->

<xs:element name="requester-vehicle" type=" CPTVehicleIden " minOccurs="0"/>

<xs:element name="pickupStoppoint" type=" CPTStoppointIden " minOccurs="0"/>

<-- if requester is at a stoppoint -->

<xs:element name="pickupLocation" type=" lrms:GeoLocation " minOccurs="0"/>

<-- if requester not at stoppoint -->

<xs:element name="requester-route" type=" SCHRouteIden "/>

<xs:element name="requester-route-direction" type=" lrms:Direction " minOccurs="0"/>

<xs:element name="to-stoppoint" type=" CPTStoppointIden "/>

<xs:element name="requester-eta-at-stoppoint" type=" CPT-DateTime " minOccurs="0"/>

<xs:element name="central-id" type=" CC-TravelerRequestID "/>

<xs:element name="wait-until" type=" CPT-DateTime "/>

<xs:element name="pickup-PTV" type=" CPTVehicleIden "/>

</xs:sequence>

</xs:complexType>
