Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

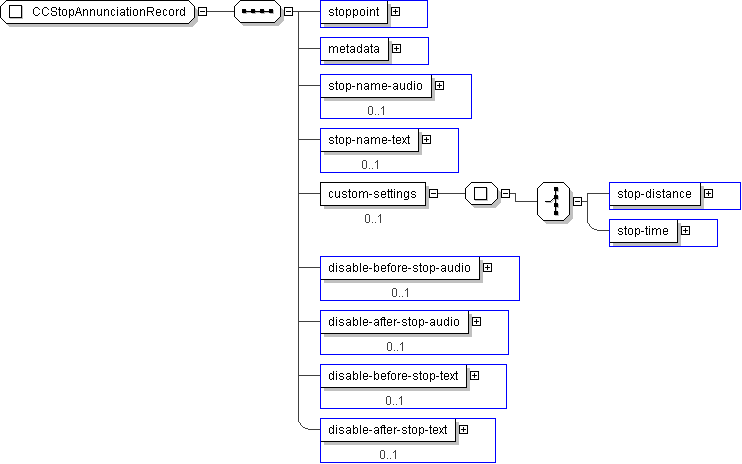

Name	CCStopAnnunciationRecord
Used by (from the same schema document)	Complex Type CcAnnouncementInfo
Abstract	no

XML Instance Representation

<...>

<stoppoint> CPTStoppointIden </stoppoint> [1]

<metadata> CPTRowMetaData </metadata> [1]

<stop-name-audio> PI-BinaryAudioData </stop-name-audio> [0..1]

<stop-name-text> PI-PIDTakeText </stop-name-text> [0..1]

<custom-settings> [0..1]
Start Choice [1]

<stop-distance> lrms:Distance </stop-distance> [1]

<stop-time> CPT-Duration </stop-time> [1]

End Choice
</custom-settings>

<disable-before-stop-audio> CPT-Boolean </disable-before-stop-audio> [0..1]

<disable-after-stop-audio> CPT-Boolean </disable-after-stop-audio> [0..1]

<disable-before-stop-text> CPT-Boolean </disable-before-stop-text> [0..1]

<disable-after-stop-text> CPT-Boolean </disable-after-stop-text> [0..1]

</...>

Schema Component Representation

<xs:complexType name="CCStopAnnunciationRecord">

<xs:sequence>

<xs:element name="stoppoint" type=" CPTStoppointIden "/>

<xs:element name="metadata" type=" CPTRowMetaData "/>

<xs:element name="stop-name-audio" type=" PI-BinaryAudioData " minOccurs="0"/>

<xs:element name="stop-name-text" type=" PI-PIDTakeText " minOccurs="0"/>

<xs:element name="custom-settings" minOccurs="0">

<xs:complexType>

<xs:choice>

<xs:element name="stop-distance" type=" lrms:Distance "/>

<xs:element name="stop-time" type=" CPT-Duration "/>

</xs:choice>

</xs:complexType>

</xs:element>

<xs:element name="disable-before-stop-audio" type=" CPT-Boolean " minOccurs="0"/>

<xs:element name="disable-after-stop-audio" type=" CPT-Boolean " minOccurs="0"/>

<xs:element name="disable-before-stop-text" type=" CPT-Boolean " minOccurs="0"/>

<xs:element name="disable-after-stop-text" type=" CPT-Boolean " minOccurs="0"/>

</xs:sequence>

</xs:complexType>
