Documentation for ATIS-Draft-03-00-79

Element: scpStatusControl

[Table of contents]

Name scpStatusControl
Type ScpStatusControl
Nillable no
Abstract no

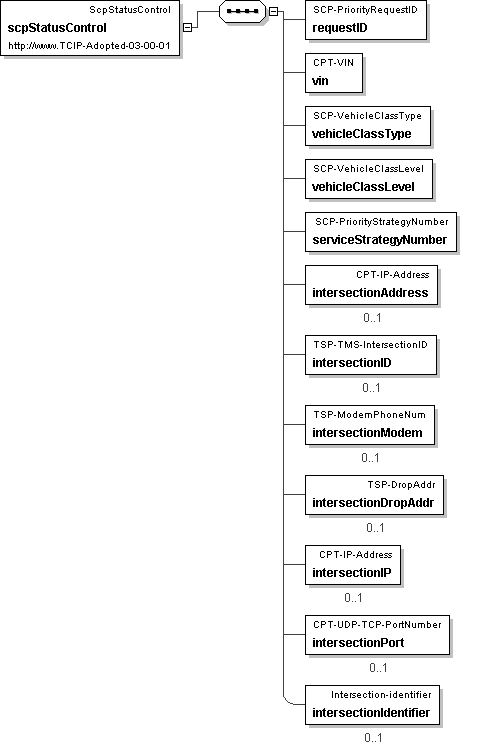

Logical Diagram
XML Instance Representation
<scpStatusControl>
<requestID> SCP-PriorityRequestID </requestID> [1]
<vin> CPT-VIN </vin> [1]
<vehicleClassType> SCP-VehicleClassType </vehicleClassType> [1]
<vehicleClassLevel> SCP-VehicleClassLevel </vehicleClassLevel> [1]
<serviceStrategyNumber> SCP-PriorityStrategyNumber </serviceStrategyNumber> [1]
<intersectionAddress> CPT-IP-Address </intersectionAddress> [0..1]
<intersectionID> TSP-TMS-IntersectionID </intersectionID> [0..1]
<intersectionModem> TSP-ModemPhoneNum </intersectionModem> [0..1]
<intersectionDropAddr> TSP-DropAddr </intersectionDropAddr> [0..1]
<intersectionIP> CPT-IP-Address </intersectionIP> [0..1]
<intersectionPort> CPT-UDP-TCP-PortNumber </intersectionPort> [0..1]
<intersectionIdentifier> tmdd:Intersection-identifier </intersectionIdentifier> [0..1]
</scpStatusControl>

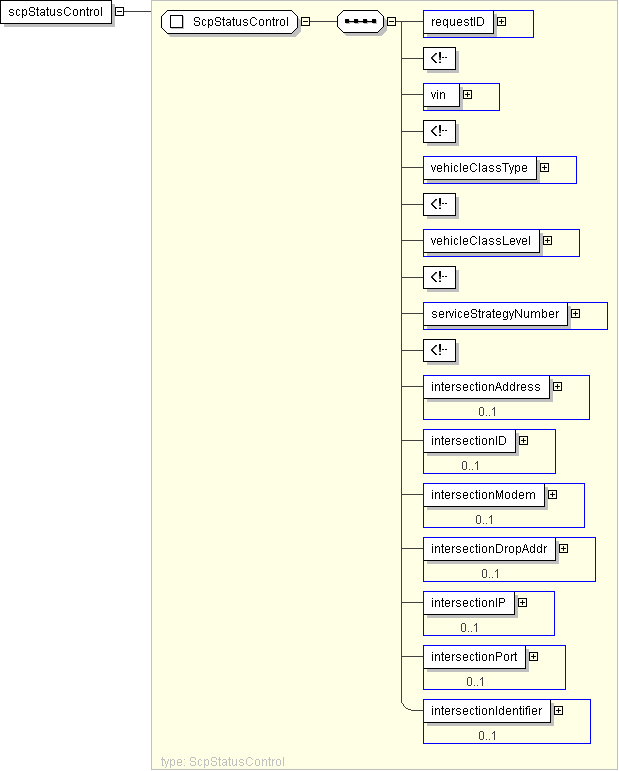

Diagram
