Documentation for ATIS-Draft-03-00-79

Element: ccPTVInspectionAck

[Table of contents]

Name ccPTVInspectionAck
Type CcPTVInspectionAck
Nillable no
Abstract no

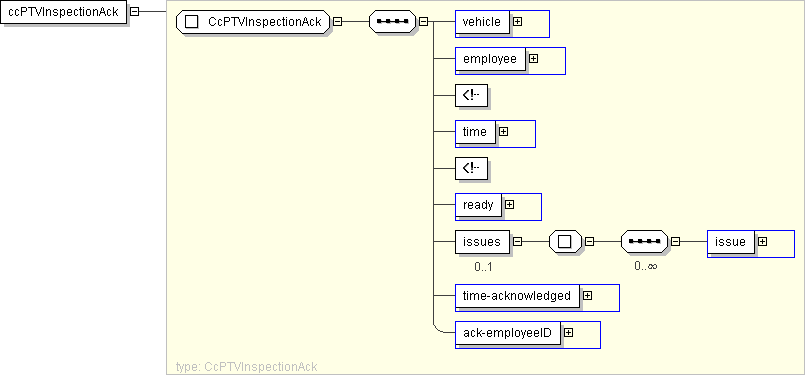

Logical Diagram
h-1556768535 h-1835920239 h-1378960035
XML Instance Representation
<ccPTVInspectionAck>
<vehicle> CPTVehicleIden </vehicle> [1]
<employee> CPTEmployeeIden </employee> [1]
<time> CPT-DateTime </time> [1]
<ready> CPT-Boolean </ready> [1]
<issues> [0..1]
Start Sequence [0..*]
<issue> CC-PTVInspectionFault </issue> [1]
End Sequence
</issues>
<time-acknowledged> CPT-DateTime </time-acknowledged> [1]
<ack-employeeID> CPT-EmployeeID </ack-employeeID> [1]
</ccPTVInspectionAck>

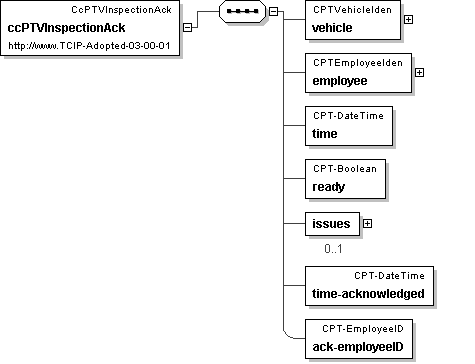

Diagram
h1471596526 h-1303246092 h1272267302 h325016637 h1641749284 h1272267302 h-1799120876
Schema Component Representation
<xs:element name="ccPTVInspectionAck" type=" CcPTVInspectionAck "/>
