Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

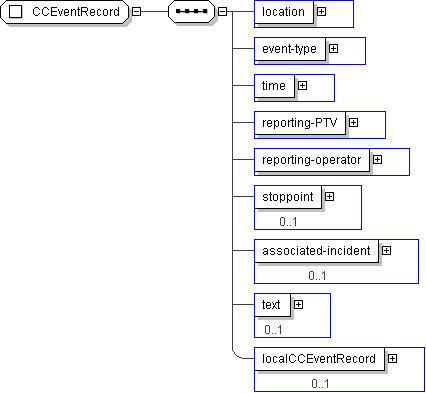

Name	CCEventRecord
Used by (from the same schema document)	Complex Type CcPTVPerformanceData , Complex Type CcReportServiceEvent , Complex Type CcReportServiceEventAck
Abstract	no

XML Instance Representation

<...>

<location> lrms:GeoLocation </location> [1]

<event-type> CC-ServiceEventType </event-type> [1]

<time> CPT-DateTime </time> [1]

<reporting-PTV> CPTVehicleIden </reporting-PTV> [1]

<reporting-operator> CPTOperatorIden </reporting-operator> [1]

<stoppoint> CPTStoppointIden </stoppoint> [0..1]

<associated-incident> IMIncidentIden </associated-incident> [0..1]

<text> CPT-Footnote </text> [0..1]

<localCCEventRecord> local:CCEventRecord </localCCEventRecord> [0..1]

</...>

Schema Component Representation

<xs:complexType name="CCEventRecord">

<xs:sequence>

<xs:element name="location" type=" lrms:GeoLocation "/>

<xs:element name="event-type" type=" CC-ServiceEventType "/>

<xs:element name="time" type=" CPT-DateTime "/>

<xs:element name="reporting-PTV" type=" CPTVehicleIden "/>

<xs:element name="reporting-operator" type=" CPTOperatorIden "/>

<xs:element name="stoppoint" type=" CPTStoppointIden " minOccurs="0"/>

<xs:element name="associated-incident" type=" IMIncidentIden " minOccurs="0"/>

<xs:element name="text" type=" CPT-Footnote " minOccurs="0"/>

<xs:element name="localCCEventRecord" type=" local:CCEventRecord " minOccurs="0"/>

</xs:sequence>

</xs:complexType>
