Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

Name	ScpStatusBuffer
Used by (from the same schema document)	Element scpStatusBuffer
Abstract	no

XML Instance Representation

<...>

<requestID> SCP-PriorityRequestID </requestID> [1]

<vin> CPT-VIN </vin> [1]

<vehicleClassType> SCP-VehicleClassType </vehicleClassType> [1]

<vehicleClassLevel> SCP-VehicleClassLevel </vehicleClassLevel> [1]

<serviceStrategyNumber> SCP-PriorityStrategyNumber </serviceStrategyNumber> [1]

<statusForPRG> SCP-StatusForPRG </statusForPRG> [1]

<statusCodeForPRG> SCP-StatusCodeForPRG </statusCodeForPRG> [1]

<intersectionID> TSP-TMS-IntersectionID </intersectionID> [0..1]

<intersectionModem> TSP-ModemPhoneNum </intersectionModem> [0..1]

<intersectionDropAddr> TSP-DropAddr </intersectionDropAddr> [0..1]

<intersectionIP> CPT-IP-Address </intersectionIP> [0..1]

<intersectionPort> CPT-UDP-TCP-PortNumber </intersectionPort> [0..1]

<intersectionIdentifier> tmdd:Intersection-identifier </intersectionIdentifier> [0..1]

</...>

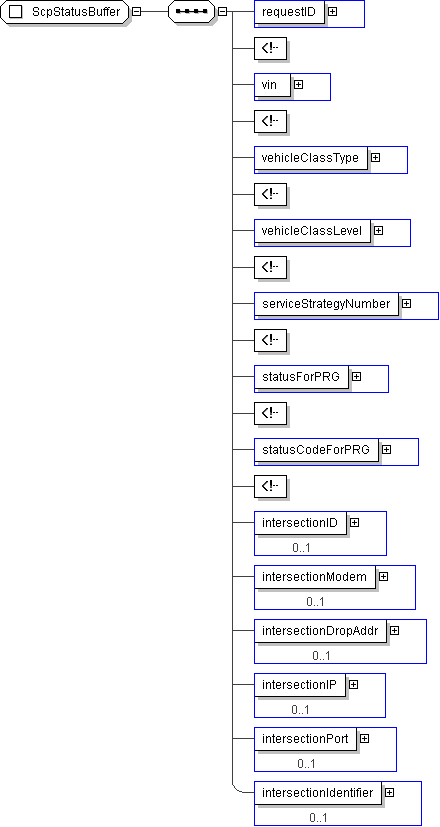

Schema Component Representation

<xs:complexType name="ScpStatusBuffer">

<xs:sequence>

<xs:element name="requestID" type=" SCP-PriorityRequestID "/>

<-- 1octet -->

<xs:element name="vin" type=" CPT-VIN "/>

<-- 17octets -->

<xs:element name="vehicleClassType" type=" SCP-VehicleClassType "/>

<-- 1octet -->

<xs:element name="vehicleClassLevel" type=" SCP-VehicleClassLevel "/>

<-- 1octet -->

<xs:element name="serviceStrategyNumber" type=" SCP-PriorityStrategyNumber "/>

<-- 1octet -->

<xs:element name="statusForPRG" type=" SCP-StatusForPRG "/>

<-- 1octet -->

<xs:element name="statusCodeForPRG" type=" SCP-StatusCodeForPRG "/>

<-- 1octet -->

<xs:element name="intersectionID" type=" TSP-TMS-IntersectionID " minOccurs="0"/>

<xs:element name="intersectionModem" type=" TSP-ModemPhoneNum " minOccurs="0"/>

<xs:element name="intersectionDropAddr" type=" TSP-DropAddr " minOccurs="0"/>

<xs:element name="intersectionIP" type=" CPT-IP-Address " minOccurs="0"/>

<xs:element name="intersectionPort" type=" CPT-UDP-TCP-PortNumber " minOccurs="0"/>

<xs:element name="intersectionIdentifier" type=" tmdd:Intersection-identifier " minOccurs="0"/>

</xs:sequence>

</xs:complexType>
