Documentation for ATIS-Draft-03-00-79

Element: ccPTVInspection

[Table of contents]

Name ccPTVInspection
Type CcPTVInspection
Nillable no
Abstract no

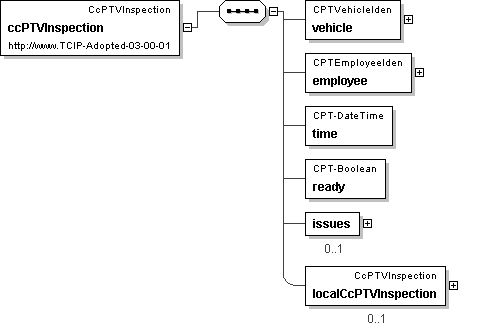

Logical Diagram
h-1556768535 h-1835920239 h-1378960035 h-1757841410
XML Instance Representation
<ccPTVInspection>
<vehicle> CPTVehicleIden </vehicle> [1]
<employee> CPTEmployeeIden </employee> [1]
<time> CPT-DateTime </time> [1]
<ready> CPT-Boolean </ready> [1]
<issues> [0..1]
Start Sequence [0..*]
<issue> CC-PTVInspectionFault </issue> [1]
End Sequence
</issues>
<localCcPTVInspection> local:CcPTVInspection </localCcPTVInspection> [0..1]
</ccPTVInspection>

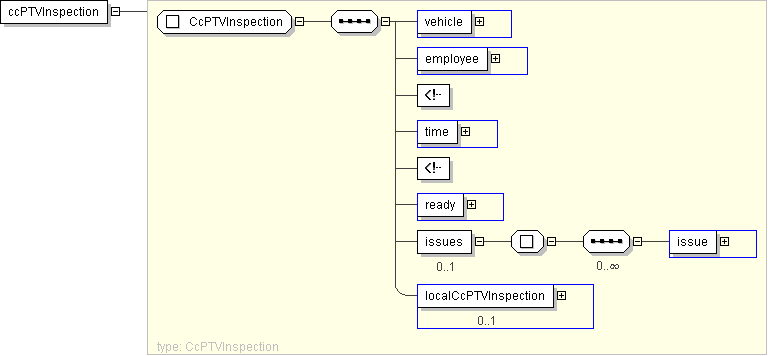

Diagram
h1471596526 h-1303246092 h1272267302 h325016637 h1641749284 h-2091566495
Schema Component Representation
<xs:element name="ccPTVInspection" type=" CcPTVInspection "/>
