Documentation for ATIS-Draft-03-00-79

Complex Type: CcDispatchMessage

[Table of contents]

Super-types: None
Sub-types: None
Name CcDispatchMessage
Used by (from the same schema document) Element ccDispatchMessage
Abstract no
XML Instance Representation
<...>
<time> CPT-DateTime </time> [1]
<text-msg> CPT-Footnote </text-msg> [0..1]
<canned-msg> CC-CannedMsgID </canned-msg> [0..1]
<takes> [0..1]
Start Sequence [1..100]
<take> CC-CannedMsgTakeID </take> [1]
End Sequence
</takes>
</...>

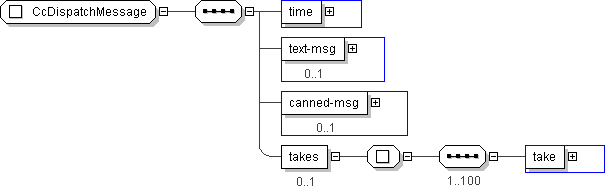

Diagram
h1272267302 h-125442069 h214388791 h-801735394
Schema Component Representation
<xs:complexType name="CcDispatchMessage">
<xs:sequence>
<xs:element name="time" type=" CPT-DateTime "/>
<xs:element name="text-msg" type=" CPT-Footnote " minOccurs="0"/>
<xs:element name="canned-msg" type=" CC-CannedMsgID " minOccurs="0"/>
<xs:element name="takes" minOccurs="0">
<xs:complexType>
<xs:sequence minOccurs="1" maxOccurs="100">
<xs:element name="take" type=" CC-CannedMsgTakeID "/>
</xs:sequence>
</xs:complexType>
</xs:element>
</xs:sequence>
</xs:complexType>
