Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

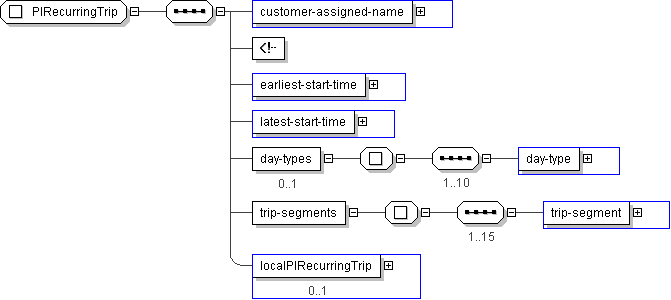

Name	PIRecurringTrip
Used by (from the same schema document)	Complex Type PICustomerProfile
Abstract	no

XML Instance Representation

<...>

<customer-assigned-name> CPT-Footnote </customer-assigned-name> [1]

<earliest-start-time> CPT-DateTime </earliest-start-time> [1]

<latest-start-time> CPT-DateTime </latest-start-time> [1]

<day-types> [0..1]
Start Sequence [1..10]

<day-type> SCH-DayType </day-type> [1]

End Sequence
</day-types>

<trip-segments> [1]
Start Sequence [1..15]

<trip-segment> PIRecurringTripSegment </trip-segment> [1]

End Sequence
</trip-segments>

<localPIRecurringTrip> local:PIRecurringTrip </localPIRecurringTrip> [0..1]

</...>

Schema Component Representation

<xs:complexType name="PIRecurringTrip">

<xs:sequence>

<xs:element name="customer-assigned-name" type=" CPT-Footnote "/>

<-- e.g. "to work" -->

<xs:element name="earliest-start-time" type=" CPT-DateTime "/>

<xs:element name="latest-start-time" type=" CPT-DateTime "/>

<xs:element name="day-types" minOccurs="0">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="10">

<xs:element name="day-type" type=" SCH-DayType "/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="trip-segments">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="15">

<xs:element name="trip-segment" type=" PIRecurringTripSegment "/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="localPIRecurringTrip" type=" local:PIRecurringTrip " minOccurs="0"/>

</xs:sequence>

</xs:complexType>
