Simple Type: OB-MenuSelection

[Table of contents]

Super-types: None
Sub-types: None
Name OB-MenuSelection
Used by (from the same schema document) Complex Type ObMenuResponse
Content
  • Union of following types:
    • Locally defined type:
      • Base XSD Type: unsignedInt
      • 0 <= value <= 17
    • Locally defined type:
      • Base XSD Type: string
      • value comes from list: {'reserved'|'menu item 1Selected'|'menu item 2Selected'|'menu item 3Selected'|'menu item 4Selected'|'menu item 5Selected'|'menu item 6Selected'|'menu item 7Selected'|'menu item 8Selected'|'menu item 9Selected'|'menu item 10Selected'|'Reserved11'|'Reserved12'|'Reserved13'|'Reserved14'|'Timeout'|'MDT unable to process request'|'Request'}
Application Data reserved (0) menu item 1Selected (1) menu item 2Selected (2) menu item 3Selected (3) menu item 4Selected (4) menu item 5Selected (5) menu item 6Selected (6) menu item 7Selected (7) menu item 8Selected (8) menu item 9Selected (9) menu item 10Selected (10) Reserved11 (11) Reserved12 (12) Reserved13 (13) Reserved14 (14) Timeout (15) MDT unable to process request (16) Request (17)

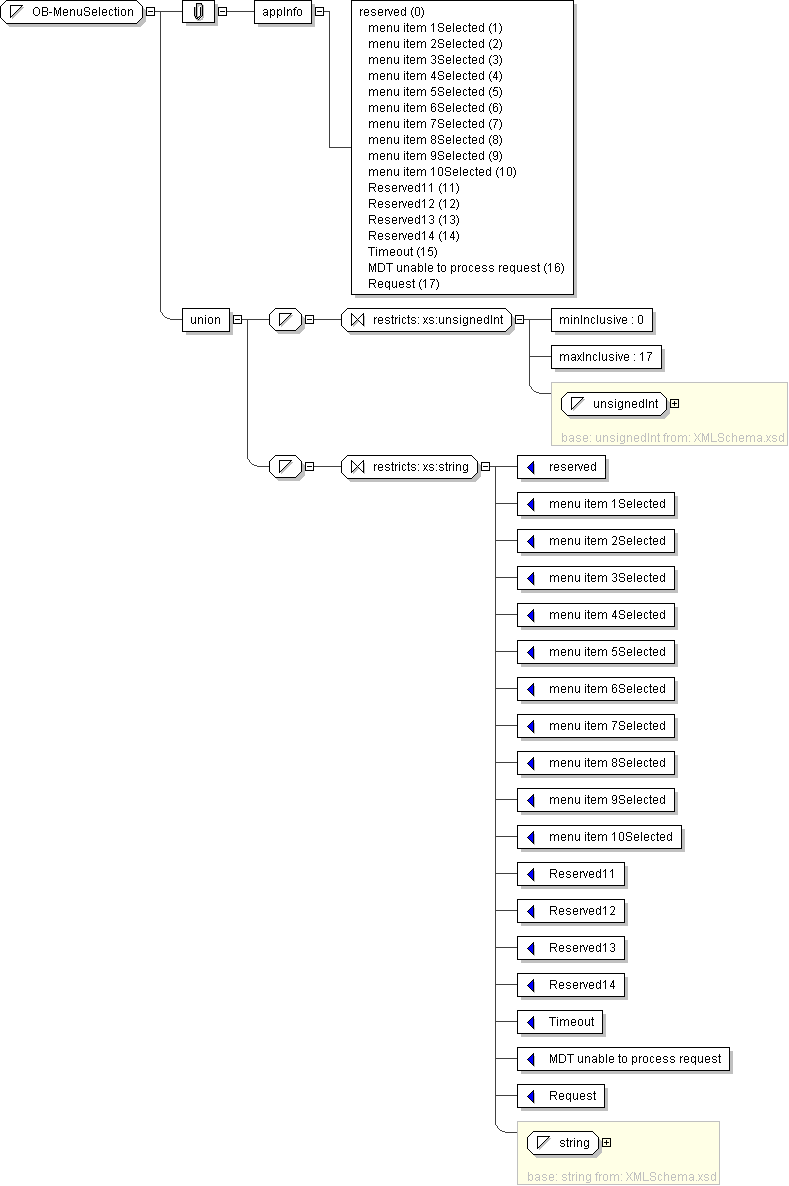

Diagram
Schema Component Representation
<xs:simpleType name="OB-MenuSelection">
<xs:union>
<xs:simpleType>
<xs:restriction base=" xs:unsignedInt ">
<xs:minInclusive value="0"/>
<xs:maxInclusive value="17"/>
</xs:restriction>
</xs:simpleType>
<xs:simpleType>
<xs:restriction base=" xs:string ">
<xs:enumeration value="reserved"/>
<xs:enumeration value="menu item 1Selected"/>
<xs:enumeration value="menu item 2Selected"/>
<xs:enumeration value="menu item 3Selected"/>
<xs:enumeration value="menu item 4Selected"/>
<xs:enumeration value="menu item 5Selected"/>
<xs:enumeration value="menu item 6Selected"/>
<xs:enumeration value="menu item 7Selected"/>
<xs:enumeration value="menu item 8Selected"/>
<xs:enumeration value="menu item 9Selected"/>
<xs:enumeration value="menu item 10Selected"/>
<xs:enumeration value="Reserved11"/>
<xs:enumeration value="Reserved12"/>
<xs:enumeration value="Reserved13"/>
<xs:enumeration value="Reserved14"/>
<xs:enumeration value="Timeout"/>
<xs:enumeration value="MDT unable to process request"/>
<xs:enumeration value="Request"/>
</xs:restriction>
</xs:simpleType>
</xs:union>
</xs:simpleType>
