Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

Name	CPTPTVehicle
Used by (from the same schema document)	Complex Type CptVehicleInventoryList
Abstract	no

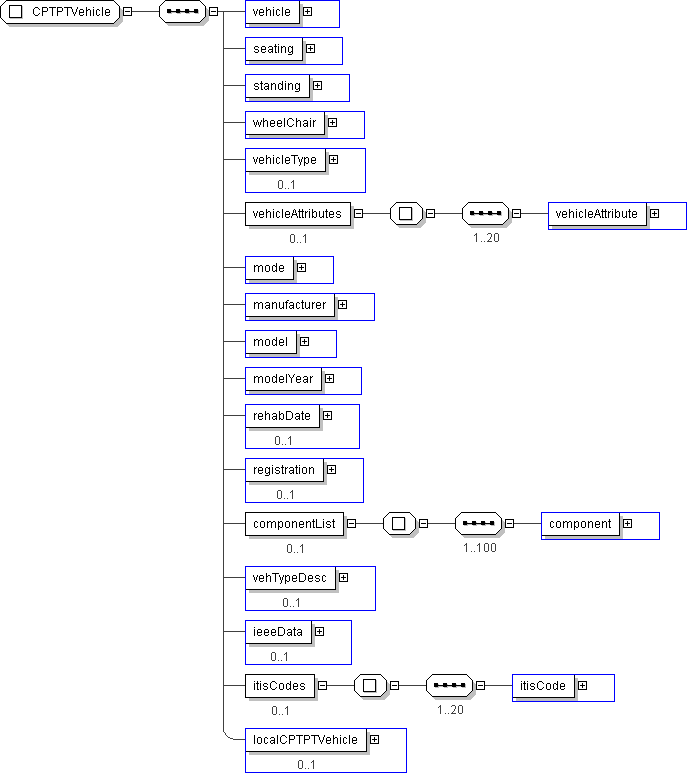

XML Instance Representation

<...>

<vehicle> CPTVehicleIden </vehicle> [1]

<seating> CPT-PTVSeatingCapacity </seating> [1]

<standing> CPT-PTVStandingCapacity </standing> [1]

<wheelChair> CPT-PTVWheelChairCapacity </wheelChair> [1]

<vehicleType> CPT-PTVehicleType </vehicleType> [0..1]

<vehicleAttributes> [0..1]
Start Sequence [1..20]

<vehicleAttribute> CPT-PTVehicleAttribute </vehicleAttribute> [1]

End Sequence
</vehicleAttributes>

<mode> CPT-Mode </mode> [1]

<manufacturer> CPT-Manufacturer </manufacturer> [1]

<model> CPT-Model </model> [1]

<modelYear> CPT-VehicleModelYear </modelYear> [1]

<rehabDate> CPT-Date </rehabDate> [0..1]

<registration> CPT-Footnote </registration> [0..1]

<componentList> [0..1]
Start Sequence [1..100]

<component> OB-MID </component> [1]

End Sequence
</componentList>

<vehTypeDesc> CPT-PTVehicleTypeDesc </vehTypeDesc> [0..1]

<ieeeData> im:VehicleSummary </ieeeData> [0..1]

<itisCodes> [0..1]
Start Sequence [1..20]

<itisCode> itis:ITIScodes </itisCode> [1]

End Sequence
</itisCodes>

<localCPTPTVehicle> local:CPTPTVehicle </localCPTPTVehicle> [0..1]

</...>

Schema Component Representation

<xs:complexType name="CPTPTVehicle">

<xs:sequence>

<xs:element name="vehicle" type=" CPTVehicleIden "/>

<xs:element name="seating" type=" CPT-PTVSeatingCapacity "/>

<xs:element name="standing" type=" CPT-PTVStandingCapacity "/>

<xs:element name="wheelChair" type=" CPT-PTVWheelChairCapacity "/>

<xs:element name="vehicleType" type=" CPT-PTVehicleType " minOccurs="0"/>

<xs:element name="vehicleAttributes" minOccurs="0">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="20">

<xs:element name="vehicleAttribute" type=" CPT-PTVehicleAttribute "/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="mode" type=" CPT-Mode "/>

<xs:element name="manufacturer" type=" CPT-Manufacturer "/>

<xs:element name="model" type=" CPT-Model "/>

<xs:element name="modelYear" type=" CPT-VehicleModelYear "/>

<xs:element name="rehabDate" type=" CPT-Date " minOccurs="0"/>

<xs:element name="registration" type=" CPT-Footnote " minOccurs="0"/>

<xs:element name="componentList" minOccurs="0">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="100">

<xs:element name="component" type=" OB-MID "/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="vehTypeDesc" type=" CPT-PTVehicleTypeDesc " minOccurs="0"/>

<xs:element name="ieeeData" type=" im:VehicleSummary " minOccurs="0"/>

<xs:element name="itisCodes" minOccurs="0">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="20">

<xs:element name="itisCode" type=" itis:ITIScodes "/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="localCPTPTVehicle" type=" local:CPTPTVehicle " minOccurs="0"/>

</xs:sequence>

</xs:complexType>
