Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

Name	CCOffRouteTrack
Used by (from the same schema document)	Complex Type CCRouteDeviationRecord
Abstract	no

XML Instance Representation

<...>

<loc-lat> lrms:Latitude </loc-lat> [1]

<loc-lon> lrms:Longitude </loc-lon> [1]

<loc-dir> lrms:Angle </loc-dir> [1]

<loc-spd> OB-J1587-VelocityVectorSpeed </loc-spd> [1]

<time> CPT-DateTime </time> [1]

</...>

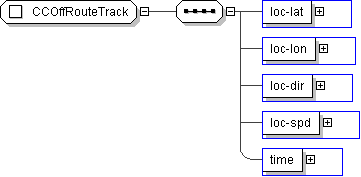

Diagram

Schema Component Representation

<xs:complexType name="CCOffRouteTrack">

<xs:sequence>

<xs:element name="loc-lat" type=" lrms:Latitude "/>

<xs:element name="loc-lon" type=" lrms:Longitude "/>

<xs:element name="loc-dir" type=" lrms:Angle "/>

<xs:element name="loc-spd" type=" OB-J1587-VelocityVectorSpeed "/>

<xs:element name="time" type=" CPT-DateTime "/>

</xs:sequence>

</xs:complexType>
