Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

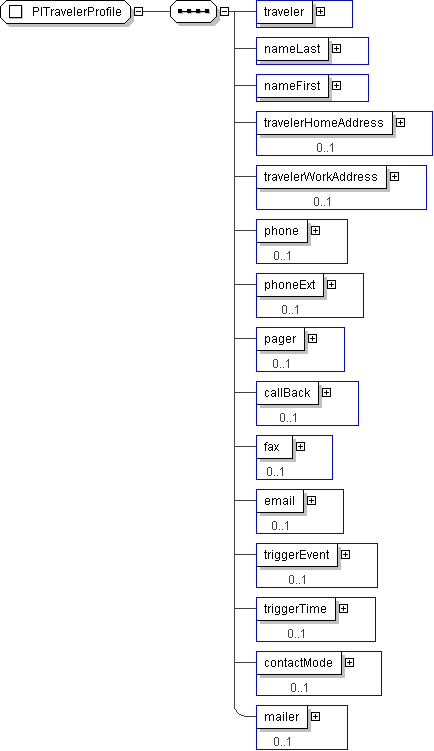

Name	PITravelerProfile
Used by (from the same schema document)	Complex Type PiSendMailing , Complex Type PITripRequest
Abstract	no

XML Instance Representation

<...>

<traveler> PITravelerIden </traveler> [1]

<nameLast> PI-TravelerLastName </nameLast> [1]

<nameFirst> PI-TravelerFirstName </nameFirst> [1]

<travelerHomeAddress> lrms:AddressPoint </travelerHomeAddress> [0..1]

<travelerWorkAddress> lrms:AddressPoint </travelerWorkAddress> [0..1]

<phone> PI-TravelerPhone </phone> [0..1]

<phoneExt> PI-TravelerPhoneExtension </phoneExt> [0..1]

<pager> PI-TravelerPager </pager> [0..1]

<callBack> PI-TravelerCallBack </callBack> [0..1]

<fax> PI-TravelerFax </fax> [0..1]

<email> PI-TravelerEmail </email> [0..1]

<triggerEvent> PI-TravelerTriggerEvent </triggerEvent> [0..1]

<triggerTime> CPT-DateTime </triggerTime> [0..1]

<contactMode> PI-TravelerContactMode </contactMode> [0..1]

<mailer> PI-TravelerMailingMatl </mailer> [0..1]

</...>

Schema Component Representation

<xs:complexType name="PITravelerProfile">

<xs:sequence>

<xs:element name="traveler" type=" PITravelerIden "/>

<xs:element name="nameLast" type=" PI-TravelerLastName "/>

<xs:element name="nameFirst" type=" PI-TravelerFirstName "/>

<xs:element name="travelerHomeAddress" type=" lrms:AddressPoint " minOccurs="0"/>

<xs:element name="travelerWorkAddress" type=" lrms:AddressPoint " minOccurs="0"/>

<xs:element name="phone" type=" PI-TravelerPhone " minOccurs="0"/>

<xs:element name="phoneExt" type=" PI-TravelerPhoneExtension " minOccurs="0"/>

<xs:element name="pager" type=" PI-TravelerPager " minOccurs="0"/>

<xs:element name="callBack" type=" PI-TravelerCallBack " minOccurs="0"/>

<xs:element name="fax" type=" PI-TravelerFax " minOccurs="0"/>

<xs:element name="email" type=" PI-TravelerEmail " minOccurs="0"/>

<xs:element name="triggerEvent" type=" PI-TravelerTriggerEvent " minOccurs="0"/>

<xs:element name="triggerTime" type=" CPT-DateTime " minOccurs="0"/>

<xs:element name="contactMode" type=" PI-TravelerContactMode " minOccurs="0"/>

<xs:element name="mailer" type=" PI-TravelerMailingMatl " minOccurs="0"/>

</xs:sequence>

</xs:complexType>
