Documentation for ATIS-Draft-03-00-79

Element: ccConnProtWait

[Table of contents]

Name ccConnProtWait
Type CcConnProtWait
Nillable no
Abstract no

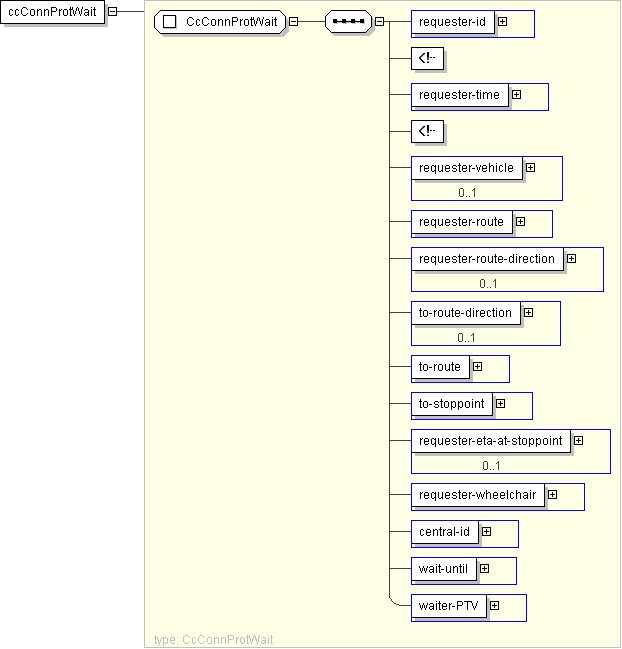

Logical Diagram
h979799896 h-279458443 h-1601176998 h-516434337 h785432714
XML Instance Representation
<ccConnProtWait>
<requester-id> CC-TravelerRequestID </requester-id> [1]
<requester-time> CPT-DateTime </requester-time> [1]
<requester-vehicle> CPTVehicleIden </requester-vehicle> [0..1]
<requester-route> SCHRouteIden </requester-route> [1]
<requester-route-direction> lrms:Direction </requester-route-direction> [0..1]
<to-route-direction> lrms:Direction </to-route-direction> [0..1]
<to-route> SCHRouteIden </to-route> [1]
<to-stoppoint> CPTStoppointIden </to-stoppoint> [1]
<requester-eta-at-stoppoint> CPT-DateTime </requester-eta-at-stoppoint> [0..1]
<requester-wheelchair> CPT-Boolean </requester-wheelchair> [1]
<central-id> CC-TravelerRequestID </central-id> [1]
<wait-until> CPT-DateTime </wait-until> [1]
<waiter-PTV> CPTVehicleIden </waiter-PTV> [1]
</ccConnProtWait>

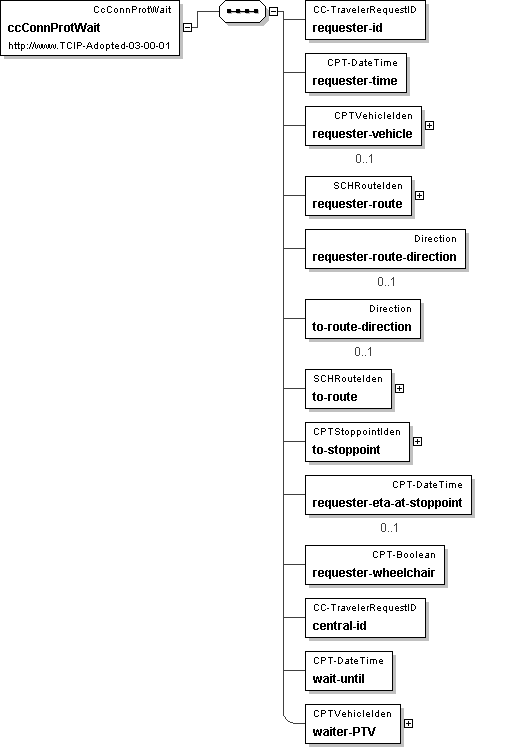

Diagram
h-874485253 h1272267302 h1471596526 h-963684166 h364081306 h364081306 h-963684166 h2146772752 h1272267302 h325016637 h-874485253 h1272267302 h1471596526
Schema Component Representation
<xs:element name="ccConnProtWait" type=" CcConnProtWait "/>
