Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

Name	CPT-ChannelAttribute
Used by (from the same schema document)	Complex Type CPTChannel
Content	Union of following types: Locally defined type: Base XSD Type: unsignedInt 1 <= value <= 9 Locally defined type: Base XSD Type: string value comes from list: {'trunk'\|'conventional'\|'full'\|'half'\|'quarter'\|'digital'\|'analog'\|'voice'\|'data'} Locally defined type: Base XSD Type: unsignedInt 128 <= value <= 255 Locally defined type: Base XSD Type: string value comes from list: {'insert-local-values-here'}
Application Data	trunk (1) conventional (2) full (3) half (4) quarter (5) digital (6) analog (7) voice (8) data (9) -- 10-127 reserved -- 128-255 local use

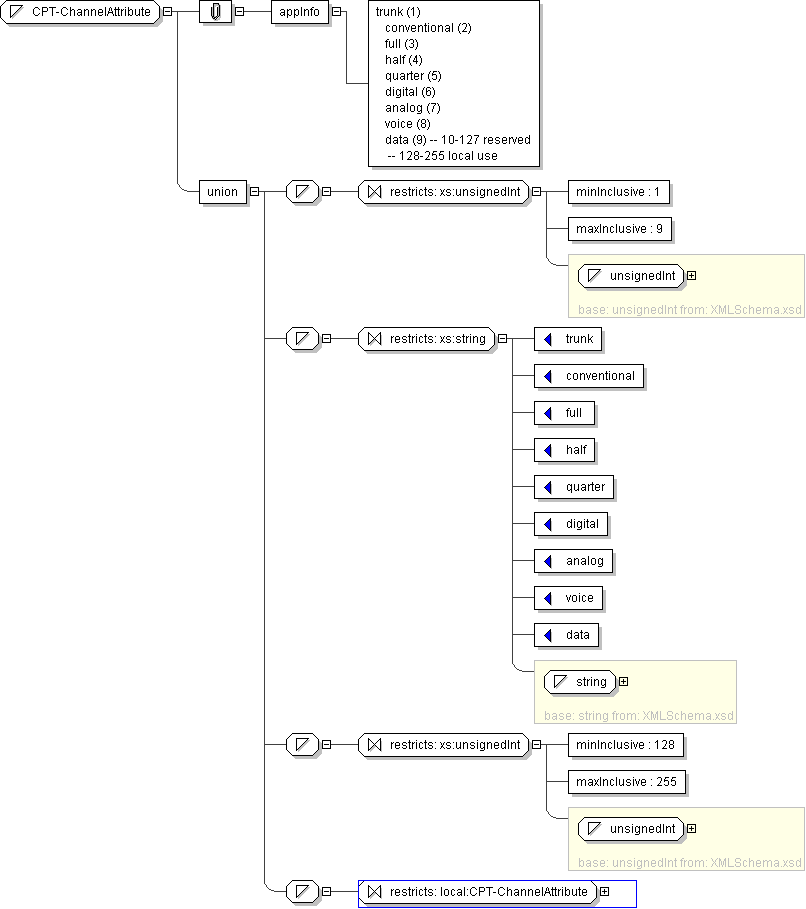

Schema Component Representation

<xs:simpleType name="CPT-ChannelAttribute">

<xs:union>

<xs:simpleType>

<xs:restriction base=" xs:unsignedInt ">

<xs:minInclusive value="1"/>

<xs:maxInclusive value="9"/>

</xs:restriction>

</xs:simpleType>

<xs:simpleType>

<xs:restriction base=" xs:string ">

<xs:enumeration value="trunk"/>

<xs:enumeration value="conventional"/>

<xs:enumeration value="full"/>

<xs:enumeration value="half"/>

<xs:enumeration value="quarter"/>

<xs:enumeration value="digital"/>

<xs:enumeration value="analog"/>

<xs:enumeration value="voice"/>

<xs:enumeration value="data"/>

</xs:restriction>

</xs:simpleType>

<xs:simpleType>

<xs:restriction base=" xs:unsignedInt ">

<xs:minInclusive value="128"/>

<xs:maxInclusive value="255"/>

</xs:restriction>

</xs:simpleType>

<xs:simpleType>

<xs:restriction base=" local:CPT-ChannelAttribute "/>

</xs:simpleType>

</xs:union>

</xs:simpleType>
