Documentation for ATIS-Draft-03-00-79

Simple Type: EssCloudSituation

[Table of contents]

Super-types: None
Sub-types: None
Name EssCloudSituation
Content
  • Union of following types:
    • Locally defined type:
      • Base XSD Type: unsignedInt
      • 1 <= value <= 5
    • Locally defined type:
      • Base XSD Type: string
      • value comes from list: {'overcast'|'cloudy'|'partlyCloudy'|'mostlyClear'|'clear'}
Documentation <Definition> Describes the amount of cloud cover. The associated percentages of cloud cover are indicated to identify the differences between the defined values. Defined values are: Value Meaning Percent Cloud Cover 1 Overcast 100 % 2 Mostly cloudy 62.5 % - 99 % 3 Partly cloudy 37.5 % - 62.4 % 4 Mostly sunny 1 % - 37.4 % 5 Clear skies 0 %</Definition>
Application Data overcast (1) cloudy (2) partlyCloudy (3) mostlyClear (4) clear (5)

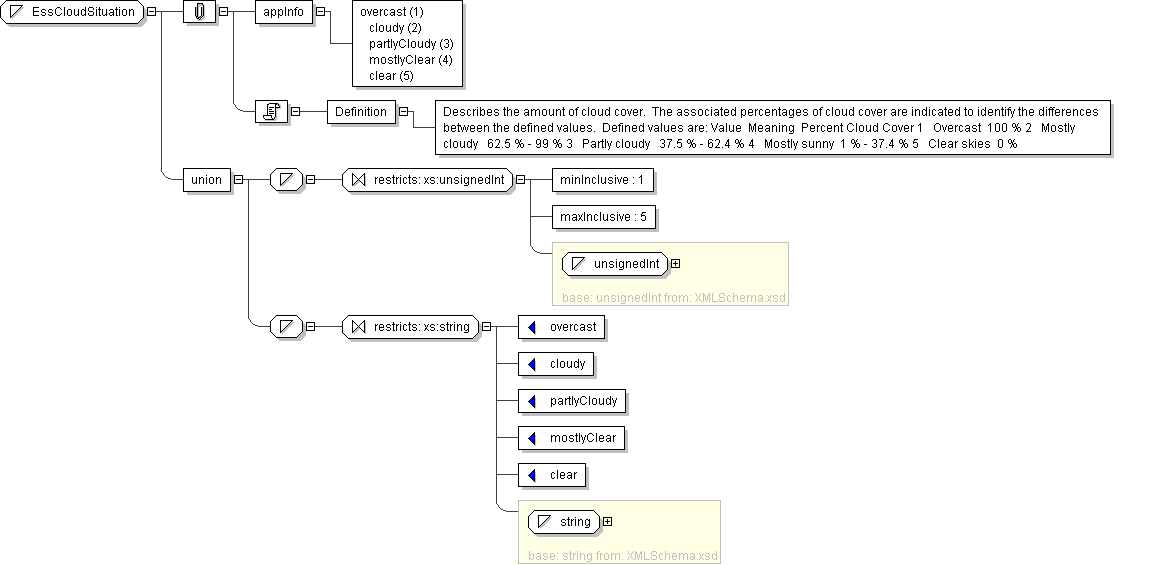

Diagram
Schema Component Representation
<xs:simpleType name="EssCloudSituation">
<xs:union>
<xs:simpleType>
<xs:restriction base=" xs:unsignedInt ">
<xs:minInclusive value="1"/>
<xs:maxInclusive value="5"/>
</xs:restriction>
</xs:simpleType>
<xs:simpleType>
<xs:restriction base=" xs:string ">
<xs:enumeration value="overcast"/>
<xs:enumeration value="cloudy"/>
<xs:enumeration value="partlyCloudy"/>
<xs:enumeration value="mostlyClear"/>
<xs:enumeration value="clear"/>
</xs:restriction>
</xs:simpleType>
</xs:union>
</xs:simpleType>

Generated by <oXygen/> XML Editor using a modified version of xs3p that adds schema diagrams and chunking support. Last modified:
