Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

Name	Transition
Used by (from the same schema document)	Complex Type Geometry , Complex Type LocationReference , Complex Type SpatialObject
Abstract	no

XML Instance Representation

<...
locationID=" String-index64 [0..1]">

<transitionName> Text-name255 </transitionName> [0..1]

<transitionId> IdType </transitionId> [1]

<transitionOffset> Distance </transitionOffset> [0..1]

</...>

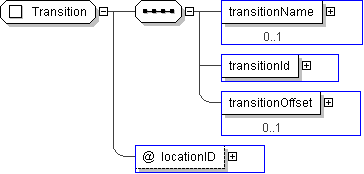

Diagram

Schema Component Representation

<xs:complexType name="Transition">

<xs:sequence>

<xs:element name="transitionName" type=" Text-name255 " minOccurs="0"/>

<xs:element name="transitionId" type=" IdType "/>

<xs:element name="transitionOffset" type=" Distance " minOccurs="0"/>

</xs:sequence>

<xs:attribute name="locationID" type=" String-index64 "/>

</xs:complexType>
