Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

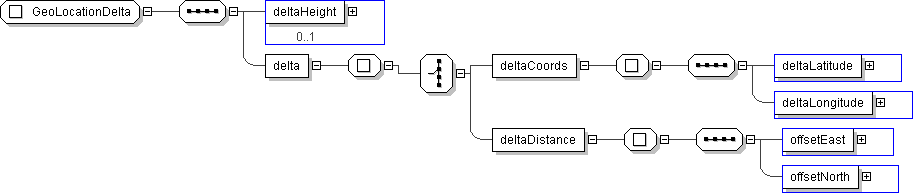

Name	GeoLocationDelta
Used by (from the same schema document)	Complex Type GeoCoord
Abstract	no

XML Instance Representation

<...>

<deltaHeight> Height </deltaHeight> [0..1]

<delta> [1]
Start Choice [1]

<deltaCoords> [1]

<deltaLatitude> Latitude </deltaLatitude> [1]

<deltaLongitude> Longitude </deltaLongitude> [1]

</deltaCoords>

<deltaDistance> [1]

<offsetEast> Distance </offsetEast> [1]

<offsetNorth> Distance </offsetNorth> [1]

</deltaDistance>

End Choice
</delta>

</...>

Schema Component Representation

<xs:complexType name="GeoLocationDelta">

<xs:sequence>

<xs:element name="deltaHeight" type=" Height " minOccurs="0"/>

<xs:element name="delta">

<xs:complexType>

<xs:choice>

<xs:element name="deltaCoords">

<xs:complexType>

<xs:sequence>

<xs:element name="deltaLatitude" type=" Latitude "/>

<xs:element name="deltaLongitude" type=" Longitude "/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="deltaDistance">

<xs:complexType>

<xs:sequence>

<xs:element name="offsetEast" type=" Distance "/>

<xs:element name="offsetNorth" type=" Distance "/>

</xs:sequence>

</xs:complexType>

</xs:element>

</xs:choice>

</xs:complexType>

</xs:element>

</xs:sequence>

</xs:complexType>
