Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

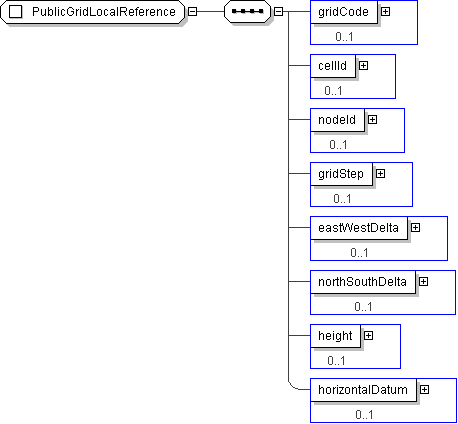

Name	PublicGridLocalReference
Used by (from the same schema document)	Complex Type PublicGrid
Abstract	no

XML Instance Representation

<...>

<gridCode> String-index64 </gridCode> [0..1]

<cellId> IdType </cellId> [0..1]

<nodeId> IdType </nodeId> [0..1]

<gridStep> PublicGridGridStep </gridStep> [0..1]

<eastWestDelta> PublicGridEastWestDelta </eastWestDelta> [0..1]

<northSouthDelta> PublicGridNorthSouthDelta </northSouthDelta> [0..1]

<height> Height </height> [0..1]

<horizontalDatum> HorizontalDatum </horizontalDatum> [0..1]

</...>

Schema Component Representation

<xs:complexType name="PublicGridLocalReference">

<xs:sequence>

<xs:element name="gridCode" type=" String-index64 " minOccurs="0"/>

<xs:element name="cellId" type=" IdType " minOccurs="0"/>

<xs:element name="nodeId" type=" IdType " minOccurs="0"/>

<xs:element name="gridStep" type=" PublicGridGridStep " minOccurs="0"/>

<xs:element name="eastWestDelta" type=" PublicGridEastWestDelta " minOccurs="0"/>

<xs:element name="northSouthDelta" type=" PublicGridNorthSouthDelta " minOccurs="0"/>

<xs:element name="height" type=" Height " minOccurs="0"/>

<xs:element name="horizontalDatum" type=" HorizontalDatum " minOccurs="0"/>

</xs:sequence>

</xs:complexType>
