Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

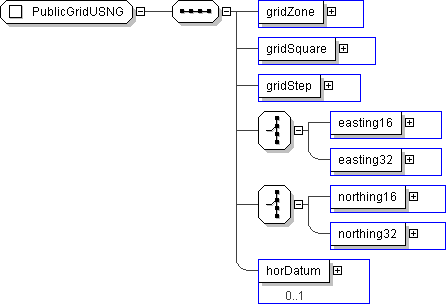

Name	PublicGridUSNG
Used by (from the same schema document)	Complex Type PublicGrid
Abstract	no

XML Instance Representation

<...>

<gridZone> PublicGridGridZone </gridZone> [1]

<gridSquare> PublicGridGridSquare </gridSquare> [1]

<gridStep> PublicGridGridStep </gridStep> [1]

Start Choice [1]

<easting16> PublicGridEasting16 </easting16> [1]

<easting32> PublicGridEasting32 </easting32> [1]

End Choice
Start Choice [1]

<northing16> PublicGridNorthing16 </northing16> [1]

<northing32> PublicGridNorthing32 </northing32> [1]

End Choice

<horDatum> HorizontalDatum </horDatum> [0..1]

</...>

Schema Component Representation

<xs:complexType name="PublicGridUSNG">

<xs:sequence>

<xs:element name="gridZone" type=" PublicGridGridZone "/>

<xs:element name="gridSquare" type=" PublicGridGridSquare "/>

<xs:element name="gridStep" type=" PublicGridGridStep "/>

<xs:choice>

<xs:element name="easting16" type=" PublicGridEasting16 "/>

<xs:element name="easting32" type=" PublicGridEasting32 "/>

</xs:choice>

<xs:choice>

<xs:element name="northing16" type=" PublicGridNorthing16 "/>

<xs:element name="northing32" type=" PublicGridNorthing32 "/>

</xs:choice>

<xs:element name="horDatum" type=" HorizontalDatum " minOccurs="0"/>

</xs:sequence>

</xs:complexType>
