Documentation for ATIS-Draft-03-00-79

Complex Type: PublicGridStatePlane

[Table of contents]

Super-types: None
Sub-types: None
Name PublicGridStatePlane
Used by (from the same schema document) Complex Type PublicGrid
Abstract no
XML Instance Representation
<...>
<statePlaneZone> PublicGridStatePlaneZone </statePlaneZone> [1]
<horDatum> HorizontalDatum </horDatum> [0..1]
<units> union of: [ [ xs:unsignedInt (0 <= value <= 1) ], [ xs:string (value comes from list: {'USSurveyFoot'|'meters'}) ] ] </units> [1]
<easting32> xs:float </easting32> [1]
<northing32> xs:float </northing32> [1]
<height> Height </height> [0..1]
</...>

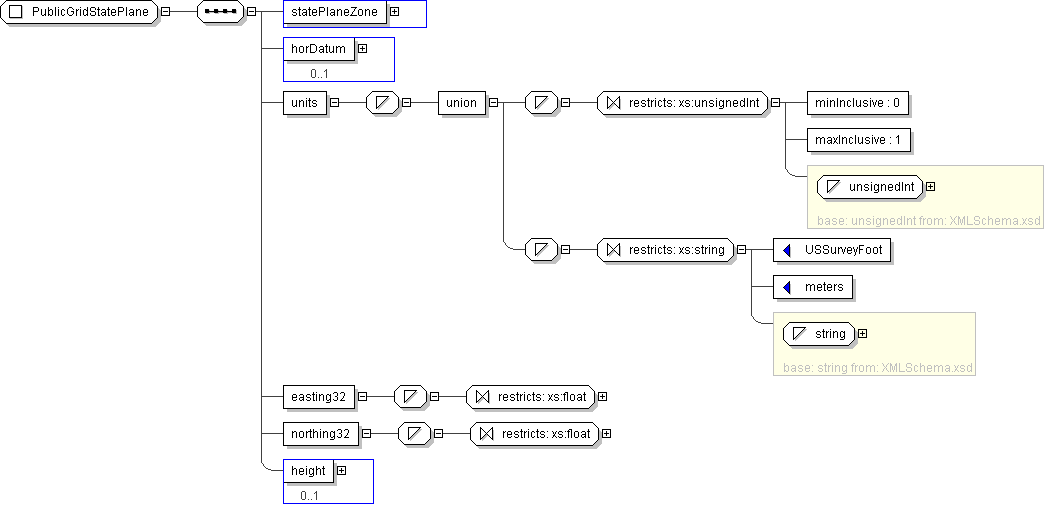

Diagram
h2133449547 h-1247450234 h-366201364
Schema Component Representation
<xs:complexType name="PublicGridStatePlane">
<xs:sequence>
<xs:element name="statePlaneZone" type=" PublicGridStatePlaneZone "/>
<xs:element name="horDatum" type=" HorizontalDatum " minOccurs="0"/>
<xs:element name="units">
<xs:simpleType>
<xs:union>
<xs:simpleType>
<xs:restriction base=" xs:unsignedInt ">
<xs:minInclusive value="0"/>
<xs:maxInclusive value="1"/>
</xs:restriction>
</xs:simpleType>
<xs:simpleType>
<xs:restriction base=" xs:string ">
<xs:enumeration value="USSurveyFoot"/>
<xs:enumeration value="meters"/>
</xs:restriction>
</xs:simpleType>
</xs:union>
</xs:simpleType>
</xs:element>
<xs:element name="easting32">
<xs:simpleType>
<xs:restriction base=" xs:float "/>
</xs:simpleType>
</xs:element>
<xs:element name="northing32">
<xs:simpleType>
<xs:restriction base=" xs:float "/>
</xs:simpleType>
</xs:element>
<xs:element name="height" type=" Height " minOccurs="0"/>
</xs:sequence>
</xs:complexType>
