Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

Name	Chain
Used by (from the same schema document)	Complex Type Geometry , Complex Type LocationReference , Complex Type SpatialObject
Abstract	no

XML Instance Representation

<...
locationID=" String-index64 [0..1]">

<chain> [1]
Start Choice [1]

<chainName> Text-name255 </chainName> [1]

<chainId> IdType </chainId> [1]

End Choice
</chain>

<startNodeInfo> NodeAttribute </startNodeInfo> [0..1]

<endNodeInfo> NodeAttribute </endNodeInfo> [0..1]

<chainOffset> Distance </chainOffset> [0..1]

<startSequenceNum> SequenceNum </startSequenceNum> [0..1]

<endSequenceNum> SequenceNum </endSequenceNum> [0..1]

</...>

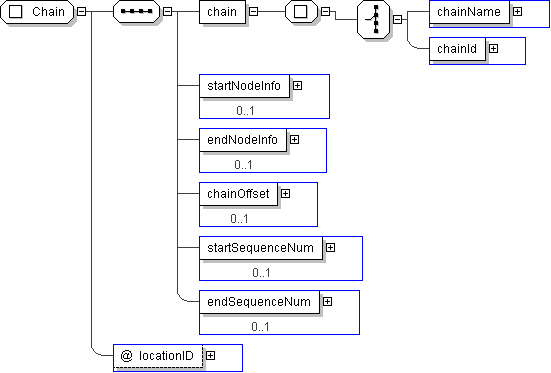

Schema Component Representation

<xs:complexType name="Chain">

<xs:sequence>

<xs:element name="chain">

<xs:complexType>

<xs:choice>

<xs:element name="chainName" type=" Text-name255 "/>

<xs:element name="chainId" type=" IdType "/>

</xs:choice>

</xs:complexType>

</xs:element>

<xs:element name="startNodeInfo" type=" NodeAttribute " minOccurs="0"/>

<xs:element name="endNodeInfo" type=" NodeAttribute " minOccurs="0"/>

<xs:element name="chainOffset" type=" Distance " minOccurs="0"/>

<xs:element name="startSequenceNum" type=" SequenceNum " minOccurs="0"/>

<xs:element name="endSequenceNum" type=" SequenceNum " minOccurs="0"/>

</xs:sequence>

<xs:attribute name="locationID" type=" String-index64 "/>

</xs:complexType>
