Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

Name	Closures
Used by (from the same schema document)	Complex Type ITISEventType
Content	Union of following types: Locally defined type: Base XSD Type: unsignedInt 768 <= value <= 1023 Locally defined type: Base XSD Type: string value comes from list: {'closed to traffic'\|'closed'\|'closed ahead'\|'closed intermittently'\|'closed for repairs'\|'closed for the season'\|'blocked'\|'blocked ahead'\|'reduced to one lane'\|'reduced to two lanes'\|'reduced to three lanes'\|'collapse'\|'out'\|'open to traffic'\|'open'\|'reopened to traffic'\|'clearing'\|'cleared from road'} Locally defined type: Base XSD Type: string pattern = \[.+\].* Locally defined type: Base XSD Type: string value comes from list: {'insert-local-values-here'}

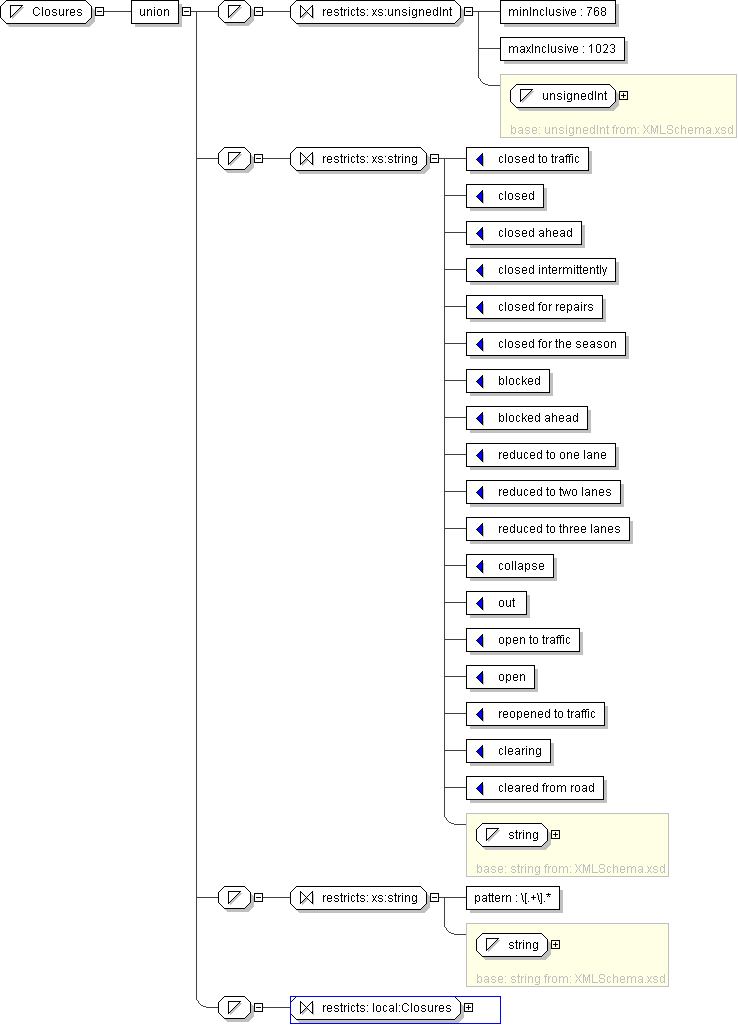

Schema Component Representation

<xs:simpleType name="Closures">

<xs:union>

<xs:simpleType>

<xs:restriction base=" xs:unsignedInt ">

<xs:minInclusive value="768"/>

<xs:maxInclusive value="1023"/>

</xs:restriction>

</xs:simpleType>

<xs:simpleType>

<xs:restriction base=" xs:string ">

<xs:enumeration value="closed to traffic" id="_769"/>

<xs:enumeration value="closed" id="_770"/>

<xs:enumeration value="closed ahead" id="_771"/>

<xs:enumeration value="closed intermittently" id="_772"/>

<xs:enumeration value="closed for repairs" id="_773"/>

<xs:enumeration value="closed for the season" id="_774"/>

<xs:enumeration value="blocked" id="_775"/>

<xs:enumeration value="blocked ahead" id="_776"/>

<xs:enumeration value="reduced to one lane" id="_777"/>

<xs:enumeration value="reduced to two lanes" id="_778"/>

<xs:enumeration value="reduced to three lanes" id="_779"/>

<xs:enumeration value="collapse" id="_780"/>

<xs:enumeration value="out" id="_781"/>

<xs:enumeration value="open to traffic" id="_891"/>

<xs:enumeration value="open" id="_892"/>

<xs:enumeration value="reopened to traffic" id="_893"/>

<xs:enumeration value="clearing" id="_894"/>

<xs:enumeration value="cleared from road" id="_895"/>

</xs:restriction>

</xs:simpleType>

<xs:simpleType>

<xs:restriction base=" xs:string ">

<xs:pattern value="\[.+\].*"/>

</xs:restriction>

</xs:simpleType>

<xs:simpleType>

<xs:restriction base=" local:Closures "/>

</xs:simpleType>

</xs:union>

</xs:simpleType>
