Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

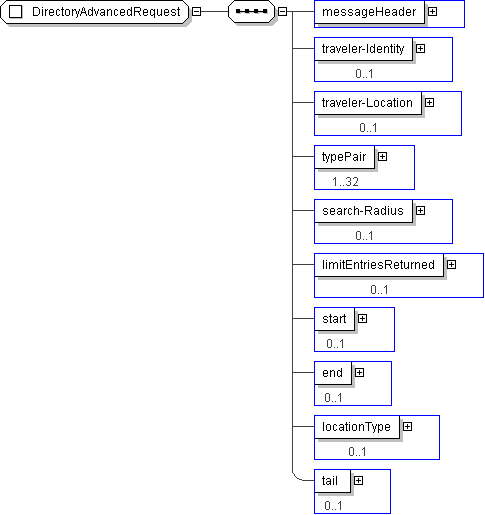

Name	DirectoryAdvancedRequest
Used by (from the same schema document)	Element directoryAdvancedRequest
Abstract	no

XML Instance Representation

<...>

<messageHeader> MessageHeader </messageHeader> [1]

<traveler-Identity> Traveler-Identity </traveler-Identity> [0..1]

<traveler-Location> lrms:LocationReference </traveler-Location> [0..1]

<typePair> DirectoryTypePair </typePair> [1..32]

<search-Radius> SearchRadius </search-Radius> [0..1]

<limitEntriesReturned> LimitReturns </limitEntriesReturned> [0..1]

<start> DateTimePair </start> [0..1]

<end> DateTimePair </end> [0..1]

<locationType> lrms:LocationReference </locationType> [0..1]

<tail> Tail </tail> [0..1]

</...>

Schema Component Representation

<xs:complexType name="DirectoryAdvancedRequest">

<xs:sequence>

<xs:element name="messageHeader" type=" MessageHeader "/>

<xs:element name="traveler-Identity" type=" Traveler-Identity " minOccurs="0"/>

<xs:element name="traveler-Location" type=" lrms:LocationReference " minOccurs="0"/>

<xs:element name="typePair" type=" DirectoryTypePair " minOccurs="1" maxOccurs="32"/>

<xs:element name="search-Radius" type=" SearchRadius " minOccurs="0"/>

<xs:element name="limitEntriesReturned" type=" LimitReturns " minOccurs="0"/>

<xs:element name="start" type=" DateTimePair " minOccurs="0"/>

<xs:element name="end" type=" DateTimePair " minOccurs="0"/>

<xs:element name="locationType" type=" lrms:LocationReference " minOccurs="0"/>

<xs:element name="tail" type=" Tail " minOccurs="0"/>

</xs:sequence>

</xs:complexType>
