Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

Name	Extent
Used by (from the same schema document)	Complex Type RoadSideAlert
Content	Union of following types: Locally defined type: Base XSD Type: unsignedInt 0 <= value <= 255 Locally defined type: Base XSD Type: string value comes from list: {'useInstantlyOnly'\|'useFor3meters'\|'useFor10meters'\|'useFor50meters'\|'useFor100meters'\|'useFor500meters'\|'useFor1000meters'\|'useFor5000meters'\|'forever'}
Documentation	encode as a single byte
Application Data	useInstantlyOnly (0) useFor3meters (1) useFor10meters (2) useFor50meters (3) useFor100meters (4) useFor500meters (5) useFor1000meters (6) useFor5000meters (7) forever (255) -- very wide area

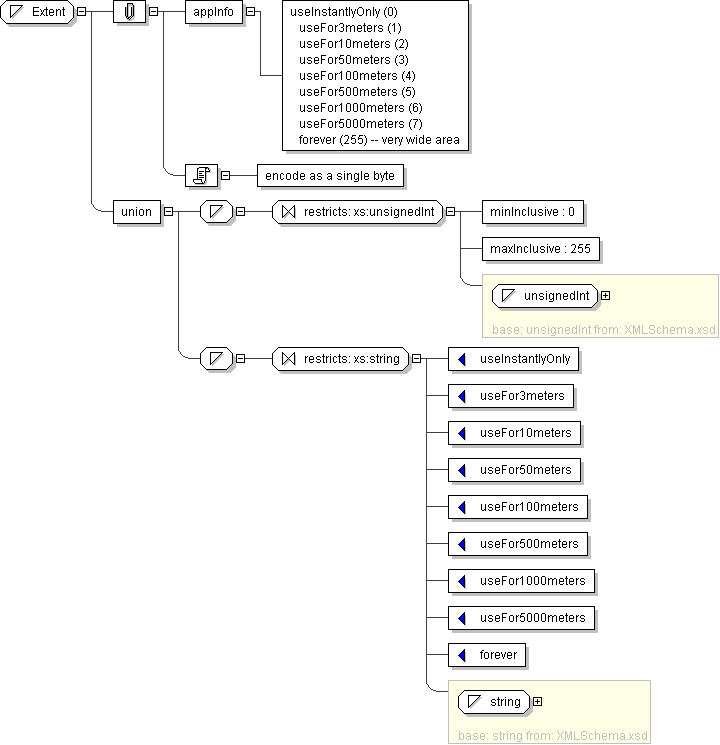

Schema Component Representation

<xs:simpleType name="Extent">

<xs:union>

<xs:simpleType>

<xs:restriction base=" xs:unsignedInt ">

<xs:minInclusive value="0"/>

<xs:maxInclusive value="255"/>

</xs:restriction>

</xs:simpleType>

<xs:simpleType>

<xs:restriction base=" xs:string ">

<xs:enumeration value="useInstantlyOnly"/>

<xs:enumeration value="useFor3meters"/>

<xs:enumeration value="useFor10meters"/>

<xs:enumeration value="useFor50meters"/>

<xs:enumeration value="useFor100meters"/>

<xs:enumeration value="useFor500meters"/>

<xs:enumeration value="useFor1000meters"/>

<xs:enumeration value="useFor5000meters"/>

<xs:enumeration value="forever"/>

</xs:restriction>

</xs:simpleType>

</xs:union>

</xs:simpleType>
