Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

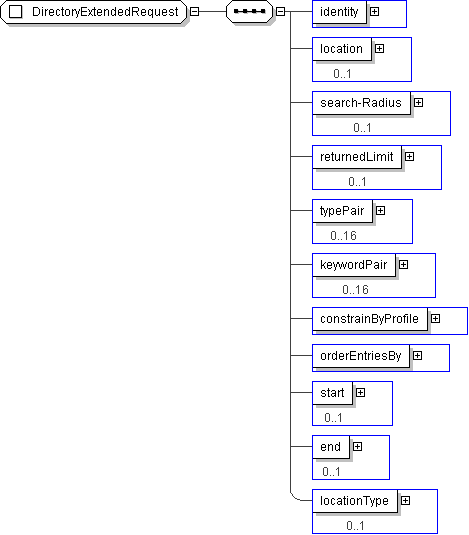

Name	DirectoryExtendedRequest
Used by (from the same schema document)	Element directoryExtendedRequest
Abstract	no

XML Instance Representation

<...>

<identity> Traveler-Identity </identity> [1]

<location> RouteOrLocation </location> [0..1]

<search-Radius> SearchRadius </search-Radius> [0..1]

<returnedLimit> LimitReturns </returnedLimit> [0..1]

<typePair> DirectoryTypePair </typePair> [0..16]

<keywordPair> DirectoryKeywordPair </keywordPair> [0..16]

<constrainByProfile> ConstrainByProfile </constrainByProfile> [1]

<orderEntriesBy> OrderEntriesBy </orderEntriesBy> [1]

<start> DateTimePair </start> [0..1]

<end> DateTimePair </end> [0..1]

<locationType> lrms:LocationReference </locationType> [0..1]

</...>

Schema Component Representation

<xs:complexType name="DirectoryExtendedRequest">

<xs:sequence>

<xs:element name="identity" type=" Traveler-Identity "/>

<xs:element name="location" type=" RouteOrLocation " minOccurs="0"/>

<xs:element name="search-Radius" type=" SearchRadius " minOccurs="0"/>

<xs:element name="returnedLimit" type=" LimitReturns " minOccurs="0"/>

<xs:element name="typePair" type=" DirectoryTypePair " minOccurs="0" maxOccurs="16"/>

<xs:element name="keywordPair" type=" DirectoryKeywordPair " minOccurs="0" maxOccurs="16"/>

<xs:element name="constrainByProfile" type=" ConstrainByProfile "/>

<xs:element name="orderEntriesBy" type=" OrderEntriesBy "/>

<xs:element name="start" type=" DateTimePair " minOccurs="0"/>

<xs:element name="end" type=" DateTimePair " minOccurs="0"/>

<xs:element name="locationType" type=" lrms:LocationReference " minOccurs="0"/>

</xs:sequence>

</xs:complexType>
