Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

Name	TravelerSettingsReply
Used by (from the same schema document)	Element travelerSettingsReply
Abstract	no

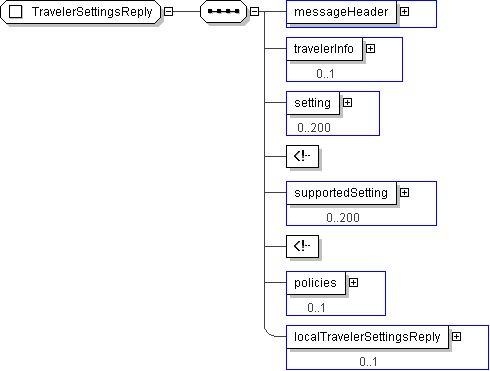

XML Instance Representation

<...>

<messageHeader> MessageHeader </messageHeader> [1]

<travelerInfo> Traveler-Identity </travelerInfo> [0..1]

<setting> SettingEntries </setting> [0..200]

<supportedSetting> SettingEntries </supportedSetting> [0..200]

<policies> URL-Link </policies> [0..1]

<localTravelerSettingsReply> local:TravelerSettingsReply </localTravelerSettingsReply> [0..1]

</...>

Schema Component Representation

<xs:complexType name="TravelerSettingsReply">

<xs:sequence>

<xs:element name="messageHeader" type=" MessageHeader "/>

<xs:element name="travelerInfo" type=" Traveler-Identity " minOccurs="0"/>

<xs:element name="setting" type=" SettingEntries " minOccurs="0" maxOccurs="200"/>

<-- the sequence of returned setting values -->

<xs:element name="supportedSetting" type=" SettingEntries " minOccurs="0" maxOccurs="200"/>

<-- a list of suportted values and uses -->

<xs:element name="policies" type=" URL-Link " minOccurs="0"/>

<xs:element name="localTravelerSettingsReply" type=" local:TravelerSettingsReply " minOccurs="0"/>

</xs:sequence>

</xs:complexType>
