Documentation for ATIS-Draft-03-00-79

Simple Type: SubscribeType

[Table of contents]

Super-types:	None
Sub-types:	None

Name	SubscribeType
Used by (from the same schema document)	Complex Type SubscribeForm
Content	Union of following types: Locally defined type: Base XSD Type: unsignedInt 1 <= value <= 4 Locally defined type: Base XSD Type: string value comes from list: {'new'\|'update replace'\|'cancel'\|'cancelAllPrior'}
Application Data	new (1) update replace (2) cancel (3) cancelAllPrior (4)

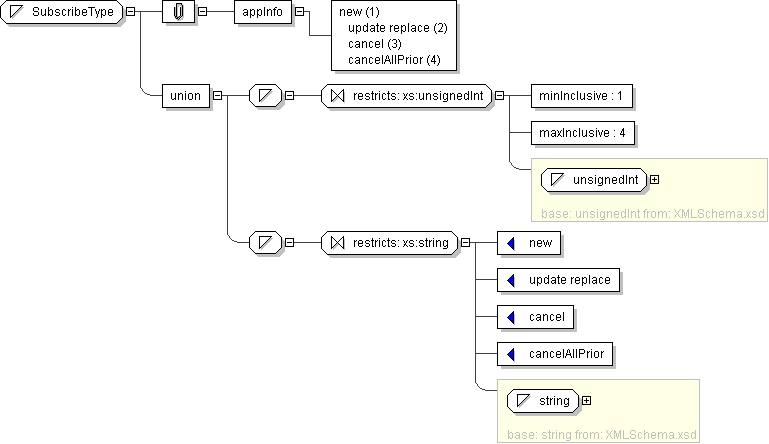

Diagram

Schema Component Representation

<xs:simpleType name="SubscribeType">

<xs:union>

<xs:simpleType>

<xs:restriction base=" xs:unsignedInt ">

<xs:minInclusive value="1"/>

<xs:maxInclusive value="4"/>

</xs:restriction>

</xs:simpleType>

<xs:simpleType>

<xs:restriction base=" xs:string ">

<xs:enumeration value="new"/>

<xs:enumeration value="update replace"/>

<xs:enumeration value="cancel"/>

<xs:enumeration value="cancelAllPrior"/>

</xs:restriction>

</xs:simpleType>

</xs:union>

</xs:simpleType>
