Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

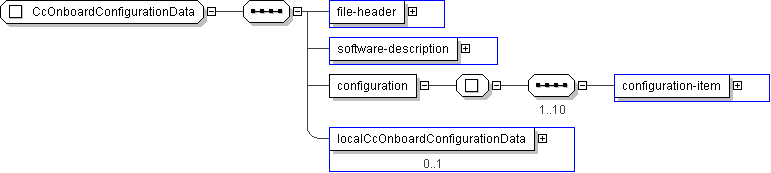

Name	CcOnboardConfigurationData
Used by (from the same schema document)	Element ccOnboardConfigurationData
Abstract	no

XML Instance Representation

<...>

<file-header> CPTLoadFileHeader </file-header> [1]

<software-description> OBSWComponent </software-description> [1]

<configuration> [1]
Start Sequence [1..10]

<configuration-item> CC-ConfigurationData </configuration-item> [1]

End Sequence
</configuration>

<localCcOnboardConfigurationData> local:CcOnboardConfigurationData </localCcOnboardConfigurationData> [0..1]

</...>

Schema Component Representation

<xs:complexType name="CcOnboardConfigurationData">

<xs:sequence>

<xs:element name="file-header" type=" CPTLoadFileHeader "/>

<xs:element name="software-description" type=" OBSWComponent "/>

<xs:element name="configuration">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="10">

<xs:element name="configuration-item" type=" CC-ConfigurationData "/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="localCcOnboardConfigurationData" type=" local:CcOnboardConfigurationData " minOccurs="0"/>

</xs:sequence>

</xs:complexType>
