Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

Name	SPStreetSeg
Used by (from the same schema document)	Complex Type CcGISFile , Complex Type CcGISFile , Complex Type SpGIS , Complex Type SpGIS , Complex Type SpGISPush
Abstract	no

XML Instance Representation

<...>

<segID> lrms:IdType </segID> [1]

<node1> lrms:IdType </node1> [1]

<node2> lrms:IdType </node2> [1]

<direction> SP-OneWay </direction> [0..1]

<feature> SP-FeatureID </feature> [0..1]

<street> lrms:IdType </street> [1]

<addr1> CPT-GenericCounter </addr1> [0..1]

<addr2> CPT-GenericCounter </addr2> [0..1]

<localSPStreetSeg> local:SPStreetSeg </localSPStreetSeg> [0..1]

</...>

Schema Component Representation

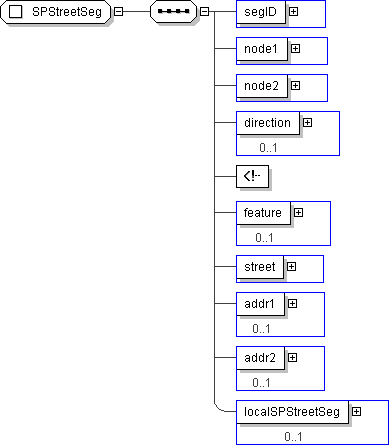

<xs:complexType name="SPStreetSeg">

<xs:sequence>

<xs:element name="segID" type=" lrms:IdType "/>

<xs:element name="node1" type=" lrms:IdType "/>

<xs:element name="node2" type=" lrms:IdType "/>

<xs:element name="direction" type=" SP-OneWay " minOccurs="0"/>

<-- if absent 2-way -->

<xs:element name="feature" type=" SP-FeatureID " minOccurs="0"/>

<xs:element name="street" type=" lrms:IdType "/>

<xs:element name="addr1" type=" CPT-GenericCounter " minOccurs="0"/>

<xs:element name="addr2" type=" CPT-GenericCounter " minOccurs="0"/>

<xs:element name="localSPStreetSeg" type=" local:SPStreetSeg " minOccurs="0"/>

</xs:sequence>

</xs:complexType>
