Documentation for ATIS-Draft-03-00-79

Element: cptStoppointList

[Table of contents]

Name cptStoppointList
Type CptStoppointList
Nillable no
Abstract no

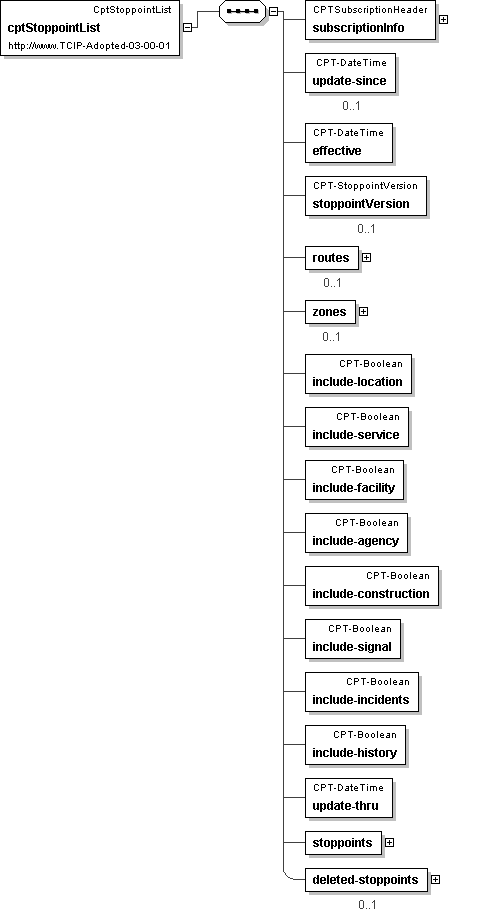

Logical Diagram
h-841091506 h-1124933139 h-583096508 h220470408 h9612220
XML Instance Representation
<cptStoppointList>
<subscriptionInfo> CPTSubscriptionHeader </subscriptionInfo> [1]
<update-since> CPT-DateTime </update-since> [0..1]
<effective> CPT-DateTime </effective> [1]
<stoppointVersion> CPT-StoppointVersion </stoppointVersion> [0..1]
<routes> [0..1]
Start Sequence [1..500]
<route> SCHRouteIden </route> [1]
End Sequence
</routes>
<zones> [0..1]
Start Sequence [1..100]
<zone> PIServiceZoneIden </zone> [1]
End Sequence
</zones>
<include-location> CPT-Boolean </include-location> [1]
<include-service> CPT-Boolean </include-service> [1]
<include-facility> CPT-Boolean </include-facility> [1]
<include-agency> CPT-Boolean </include-agency> [1]
<include-construction> CPT-Boolean </include-construction> [1]
<include-signal> CPT-Boolean </include-signal> [1]
<include-incidents> CPT-Boolean </include-incidents> [1]
<include-history> CPT-Boolean </include-history> [1]
<update-thru> CPT-DateTime </update-thru> [1]
<stoppoints> [1]
Start Sequence [1..25000]
<stoppoint> CPTStoppoint </stoppoint> [1]
End Sequence
</stoppoints>
<deleted-stoppoints> [0..1]
Start Sequence [1..25000]
<deleted-stoppoint> CPTStoppointIden </deleted-stoppoint> [1]
End Sequence
</deleted-stoppoints>
</cptStoppointList>

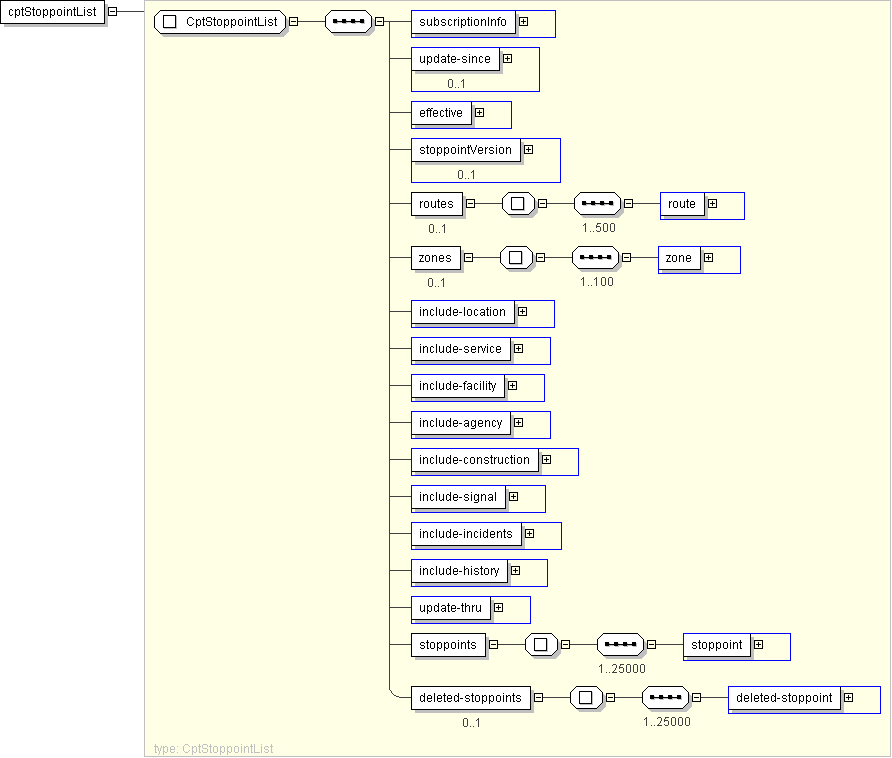

Diagram
h-527207252 h1272267302 h1272267302 h1258252725 h-963684166 h506659239 h325016637 h325016637 h325016637 h325016637 h325016637 h325016637 h325016637 h325016637 h1272267302 h-1499379220 h2146772752
Schema Component Representation
<xs:element name="cptStoppointList" type=" CptStoppointList "/>
