Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

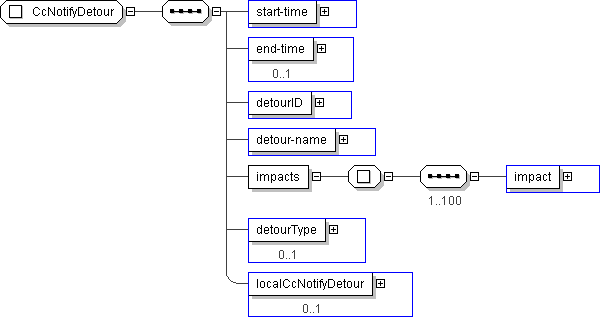

Name	CcNotifyDetour
Used by (from the same schema document)	Element ccNotifyDetour
Abstract	no

XML Instance Representation

<...>

<start-time> CPT-DateTime </start-time> [1]

<end-time> CPT-DateTime </end-time> [0..1]

<detourID> CC-DetourID </detourID> [1]

<detour-name> CPT-Footnote </detour-name> [1]

<impacts> [1]
Start Sequence [1..100]

<impact> CCDetourRecord </impact> [1]

End Sequence
</impacts>

<detourType> IM-DetourType </detourType> [0..1]

<localCcNotifyDetour> local:CcNotifyDetour </localCcNotifyDetour> [0..1]

</...>

Schema Component Representation

<xs:complexType name="CcNotifyDetour">

<xs:sequence>

<xs:element name="start-time" type=" CPT-DateTime "/>

<xs:element name="end-time" type=" CPT-DateTime " minOccurs="0"/>

<xs:element name="detourID" type=" CC-DetourID "/>

<xs:element name="detour-name" type=" CPT-Footnote "/>

<xs:element name="impacts">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="100">

<xs:element name="impact" type=" CCDetourRecord "/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="detourType" type=" IM-DetourType " minOccurs="0"/>

<xs:element name="localCcNotifyDetour" type=" local:CcNotifyDetour " minOccurs="0"/>

</xs:sequence>

</xs:complexType>
