Documentation for ATIS-Draft-03-00-79

Element: schTimepointList

[Table of contents]

Name schTimepointList
Type SchTimepointList
Nillable no
Abstract no

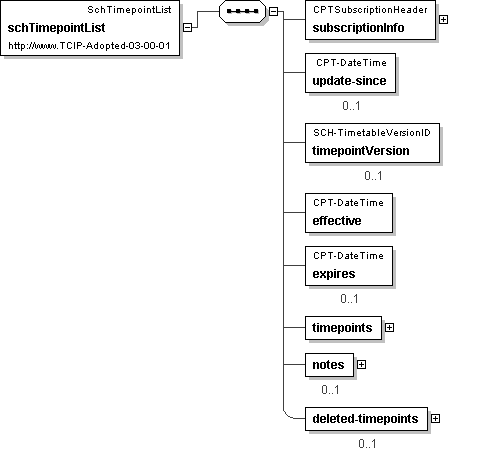

Logical Diagram
h-841091506 h-1932139757 h-594172994 h-2142997945
XML Instance Representation
<schTimepointList>
<subscriptionInfo> CPTSubscriptionHeader </subscriptionInfo> [1]
<update-since> CPT-DateTime </update-since> [0..1]
<timepointVersion> SCH-TimetableVersionID </timepointVersion> [0..1]
<effective> CPT-DateTime </effective> [1]
<expires> CPT-DateTime </expires> [0..1]
<timepoints> [1]
Start Sequence [1..10000]
<timepoint> SCHTimepointInfo </timepoint> [1]
End Sequence
</timepoints>
<notes> [0..1]
Start Sequence [1..15000]
<note> SCHNoteInfo </note> [1]
End Sequence
</notes>
<deleted-timepoints> [0..1]
Start Sequence [1..25000]
<deleted-timepoint> SCHTimepointIden </deleted-timepoint> [1]
End Sequence
</deleted-timepoints>
</schTimepointList>

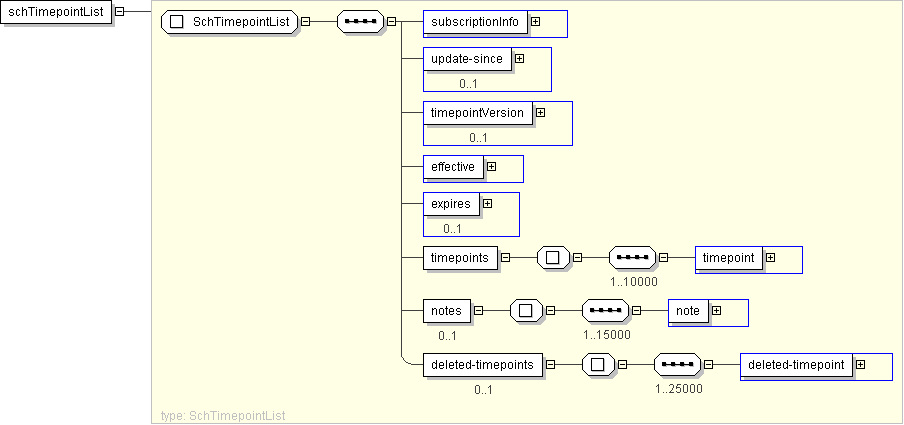

Diagram
h-527207252 h1272267302 h-337950068 h1272267302 h1272267302 h1668873086 h-1088073133 h1668863444
Schema Component Representation
<xs:element name="schTimepointList" type=" SchTimepointList "/>
