Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

Name	CPT-PlatformType
Used by (from the same schema document)	Complex Type CPTStoppoint
Content	Union of following types: Locally defined type: Base XSD Type: unsignedInt 1 <= value <= 4 Locally defined type: Base XSD Type: string value comes from list: {'woodLow'\|'woodHigh'\|'concretePad'\|'concreteHigh'} Locally defined type: Base XSD Type: unsignedInt 128 <= value <= 255 Locally defined type: Base XSD Type: unsignedInt 128 <= value <= 255 Locally defined type: Base XSD Type: string value comes from list: {'insert-local-values-here'}
Application Data	woodLow (1) woodHigh (2) concretePad (3) concreteHigh (4) -- 5-127 reserved -- 128-255 local use

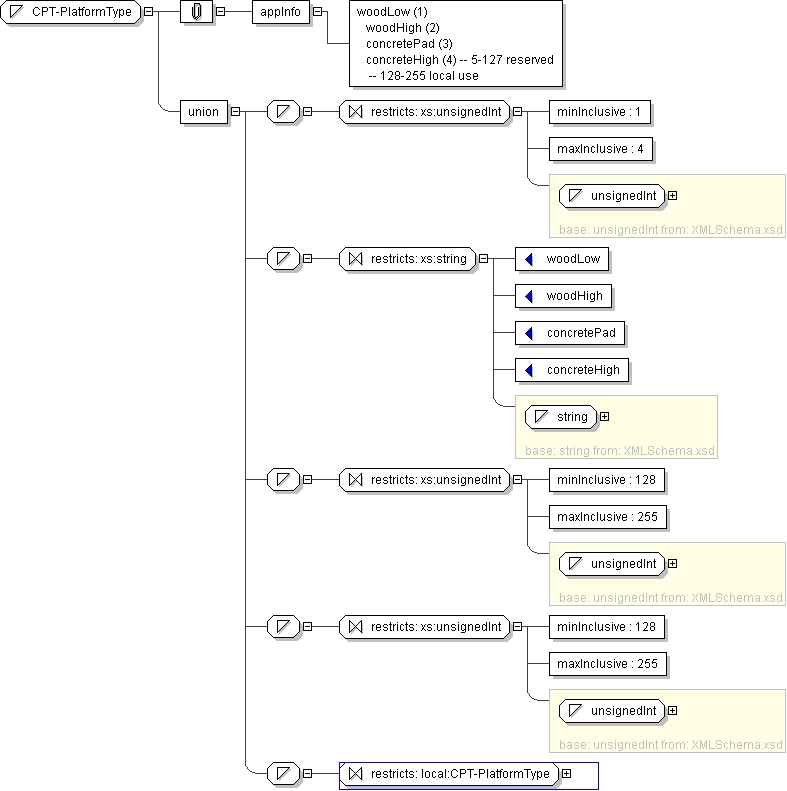

Schema Component Representation

<xs:simpleType name="CPT-PlatformType">

<xs:union>

<xs:simpleType>

<xs:restriction base=" xs:unsignedInt ">

<xs:minInclusive value="1"/>

<xs:maxInclusive value="4"/>

</xs:restriction>

</xs:simpleType>

<xs:simpleType>

<xs:restriction base=" xs:string ">

<xs:enumeration value="woodLow"/>

<xs:enumeration value="woodHigh"/>

<xs:enumeration value="concretePad"/>

<xs:enumeration value="concreteHigh"/>

</xs:restriction>

</xs:simpleType>

<xs:simpleType>

<xs:restriction base=" xs:unsignedInt ">

<xs:minInclusive value="128"/>

<xs:maxInclusive value="255"/>

</xs:restriction>

</xs:simpleType>

<xs:simpleType>

<xs:restriction base=" xs:unsignedInt ">

<xs:minInclusive value="128"/>

<xs:maxInclusive value="255"/>

</xs:restriction>

</xs:simpleType>

<xs:simpleType>

<xs:restriction base=" local:CPT-PlatformType "/>

</xs:simpleType>

</xs:union>

</xs:simpleType>
