Documentation for ATIS-Draft-03-00-79

Element: fcFareDataPush

[Table of contents]

Name fcFareDataPush
Type FcFareDataPush
Nillable no
Abstract no

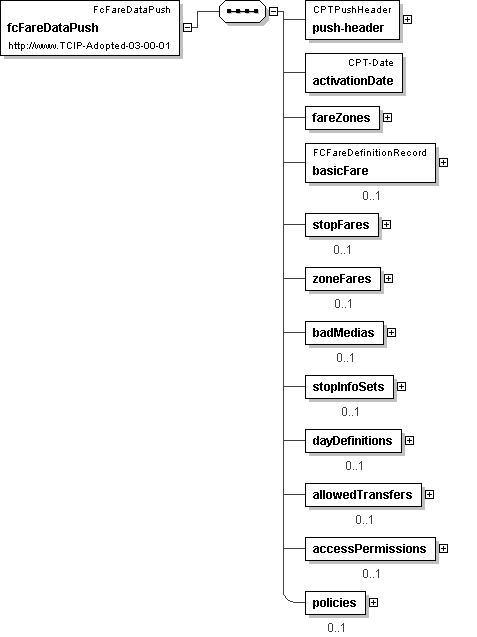

Logical Diagram
h-91148323 h-770374346 h-1121392647 h-2110294624 h1090851894 h1947053041 h1195077796 h1795586023 h1988516867 h-1875303939 h1812471603
XML Instance Representation
<fcFareDataPush>
<push-header> CPTPushHeader </push-header> [1]
<activationDate> CPT-Date </activationDate> [1]
<fareZones> [1]
Start Sequence [1..200]
<fareZone> FCFareZoneDefinition </fareZone> [1]
End Sequence
</fareZones>
<basicFare> FCFareDefinitionRecord </basicFare> [0..1]
<stopFares> [0..1]
Start Sequence [1..15000]
<stopFare> FCFareDefinitionRecord </stopFare> [1]
End Sequence
</stopFares>
<zoneFares> [0..1]
Start Sequence [1..1000]
<zoneFare> FCFareDefinitionRecord </zoneFare> [1]
End Sequence
</zoneFares>
<badMedias> [0..1]
Start Sequence [1..100000]
<badMedia> FCFareMediaPair </badMedia> [1]
End Sequence
</badMedias>
<stopInfoSets> [0..1]
Start Sequence [1..25000]
<stopInfoSet> CPTStoppoint </stopInfoSet> [1]
End Sequence
</stopInfoSets>
<dayDefinitions> [0..1]
Start Sequence [1..10]
<dayDefinition> FCDayDefinition </dayDefinition> [1]
End Sequence
</dayDefinitions>
<allowedTransfers> [0..1]
Start Sequence [1..10000]
<allowedTransfer> FCAllowedTransferRecord </allowedTransfer> [1]
End Sequence
</allowedTransfers>
<accessPermissions> [0..1]
Start Sequence [1..100]
<accessPermission> FCFareboxAccessPermission </accessPermission> [1]
End Sequence
</accessPermissions>
<policies> [0..1]
Start Sequence [1..10000]
<policy> FCFarePolicyRecord </policy> [1]
End Sequence
</policies>
</fcFareDataPush>

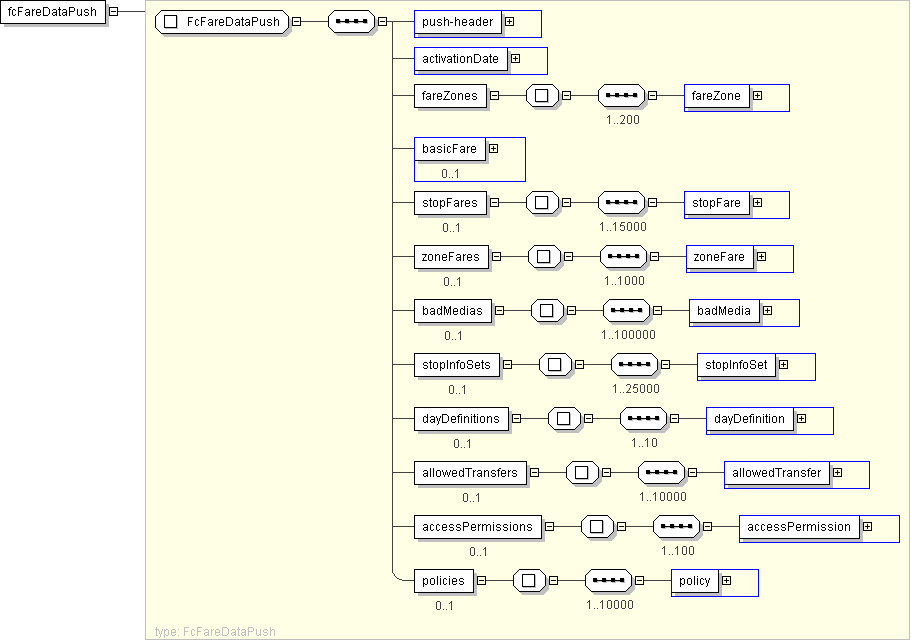

Diagram
h-1737467159 h-1969881159 h-1305842321 h-1071558956 h-1071558956 h-1071558956 h702186382 h-1499379220 h1097987405 h-725348062 h-975494898 h1154368371
Schema Component Representation
<xs:element name="fcFareDataPush" type=" FcFareDataPush "/>
