Documentation for ATIS-Draft-03-00-79

Element: ccPTVPerformanceData

[Table of contents]

Name ccPTVPerformanceData
Type CcPTVPerformanceData
Nillable no
Abstract no

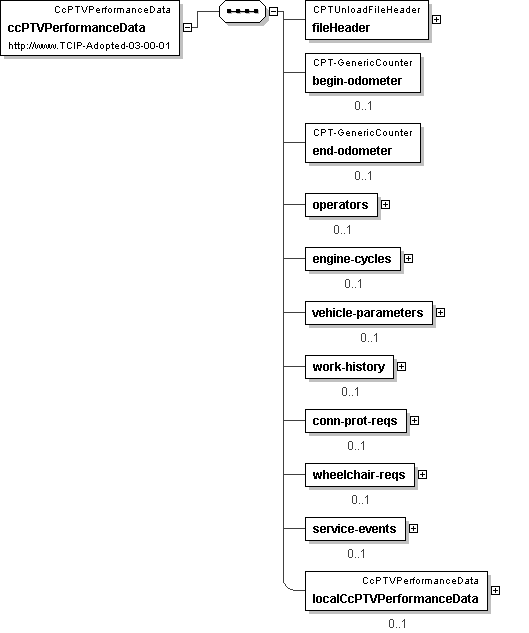

Logical Diagram
h-2078410676 h-2054063412 h-16167371 h2081823054 h-529501637 h-226270083 h2110168053 h1065776852 h-1583319120
XML Instance Representation
<ccPTVPerformanceData>
<fileHeader> CPTUnloadFileHeader </fileHeader> [1]
<begin-odometer> CPT-GenericCounter </begin-odometer> [0..1]
<end-odometer> CPT-GenericCounter </end-odometer> [0..1]
<operators> [0..1]
Start Sequence [1..100]
<operator> CCSignOnOff </operator> [1]
End Sequence
</operators>
<engine-cycles> [0..1]
Start Sequence [1..100]
<engine-cycle> CCEngineStartStop </engine-cycle> [1]
End Sequence
</engine-cycles>
<vehicle-parameters> [0..1]
Start Sequence [1..100000]
<vehicle-parameter> OBParameterDumpEntry </vehicle-parameter> [1]
End Sequence
</vehicle-parameters>
<work-history> [0..1]
Start Sequence [1..100000]
<work-history-item> CCBlockWorkRecord </work-history-item> [1]
End Sequence
</work-history>
<conn-prot-reqs> [0..1]
Start Sequence [1..1000]
<conn-prot-req> CCConnProtLogEntry </conn-prot-req> [1]
End Sequence
</conn-prot-reqs>
<wheelchair-reqs> [0..1]
Start Sequence [1..1000]
<wheelchair-req> CCWheelchairLogEntry </wheelchair-req> [1]
End Sequence
</wheelchair-reqs>
<service-events> [0..1]
Start Sequence [1..100]
<service-event> CCEventRecord </service-event> [1]
End Sequence
</service-events>
<localCcPTVPerformanceData> local:CcPTVPerformanceData </localCcPTVPerformanceData> [0..1]
</ccPTVPerformanceData>

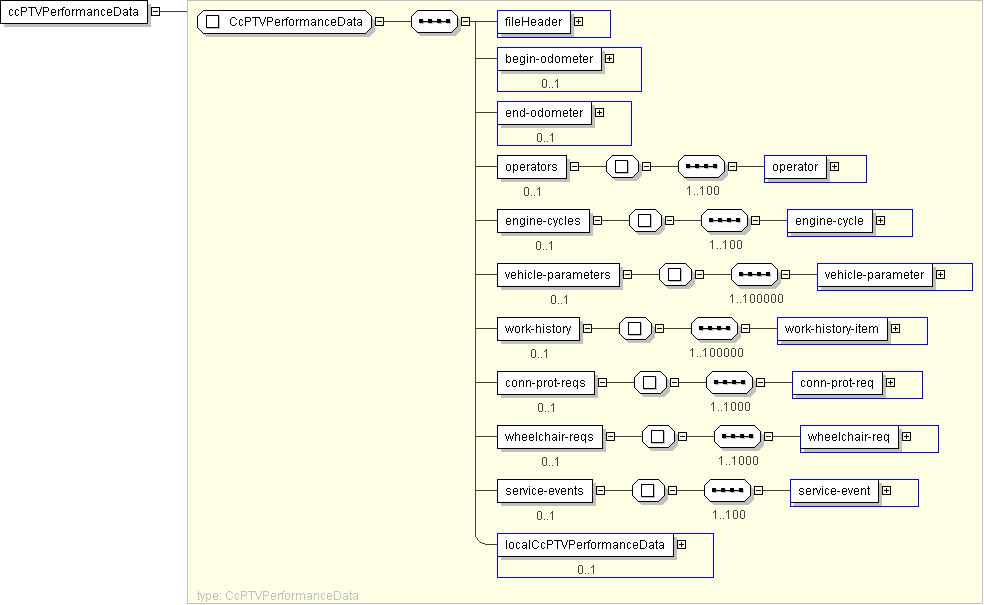

Diagram
h-615803222 h240005744 h240005744 h301338958 h863670557 h-1550992307 h-826694422 h-840915194 h1939273309 h-31799610 h-1015170259
Schema Component Representation
<xs:element name="ccPTVPerformanceData" type=" CcPTVPerformanceData "/>
