Documentation for ATIS-Draft-03-00-79

Complex Type: SCHTripIden

[Table of contents]

Super-types: None
Sub-types: None
Name SCHTripIden
Used by (from the same schema document) Complex Type CcAdherencePerformance , Complex Type CcAdherencePerformanceSub , Complex Type CcLocationReport , Complex Type ObLocation , Complex Type SchActualRunningTimes , Complex Type SchActualRunningTimesSub , Complex Type SchPushRouteSchedule , Complex Type SchPushRouteSchedule , Complex Type SchRouteSchedule , Complex Type SchRouteSchedule , Complex Type SchTripDetailList , Complex Type SchTripDetailListSub , Complex Type SpRouteGeoTrace , Complex Type SpRouteGeoTraceSub , Complex Type CCDestinationSignRule , Complex Type CCHistoricalAdherenceRecord , Complex Type CCOperatorAssignmentChange , Complex Type CCPTVTripData , Complex Type CCPullInReport , Complex Type CCPullOutReport , Complex Type CCTripCancellationRecord , Complex Type CCVehicleAssignmentChange , Complex Type FCPassengerCountRecord , Complex Type OBStoppointRecord , Complex Type PISchedAdherenceCountdown , Complex Type PISchedAdherenceOffSched , Complex Type PISchedAdherenceRange , Complex Type SCHActualRunTime , Complex Type SCHOperatorAssignment , Complex Type SCHPTVRouteScheduleEntry , Complex Type SCHPTVRouteScheduleEntry , Complex Type SCHPullInOutInfo , Complex Type SCHServiceAtStop , Complex Type SCHTimeTableTrip , Complex Type SCHTripInfo , Complex Type SCHValidationError , Complex Type SCHVehicleAssignment , Complex Type TSPScheduleEntry , Complex Type TSPStatus
Abstract no
XML Instance Representation
<...>
<trip-id> SCH-TripID </trip-id> [1]
<agency-id> CPT-AgencyID </agency-id> [0..1]
<designator> SCH-TripDesignator </designator> [0..1]
</...>

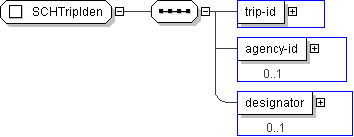

Diagram
h937203130 h948193899 h-1809324589
Schema Component Representation
<xs:complexType name="SCHTripIden">
<xs:sequence>
<xs:element name="trip-id" type=" SCH-TripID "/>
<xs:element name="agency-id" type=" CPT-AgencyID " minOccurs="0"/>
<xs:element name="designator" type=" SCH-TripDesignator " minOccurs="0"/>
</xs:sequence>
</xs:complexType>
