Documentation for ATIS-Draft-03-00-79

Simple Type: EssPrecipSituation

[Table of contents]

Super-types: None
Sub-types: None
Name EssPrecipSituation
Content
  • Union of following types:
    • Locally defined type:
      • Base XSD Type: unsignedInt
      • 1 <= value <= 15
    • Locally defined type:
      • Base XSD Type: string
      • value comes from list: {'other'|'unknown'|'noPrecipitation'|'unidentifiedSlight'|'unidentifiedModerate'|'unidentifiedHeavy'|'snowSlight'|'snowModerate'|'snowHeavy'|'rainSlight'|'rainModerate'|'rainHeavy'|'frozenPrecipitationSlight'|'frozenPrecipitationModerate'|'frozenPrecipitationHeavy'}
Documentation <Definition> Describes the weather situation in terms of precipitation. Defined values of intensity are: Intensity Meaning slight 2mm/h water equivalent moderate >= 2 and 8 mm/h water equivalent heavy >= 8 mm/h water equivalent. If one exists, the corresponding BUFR value is indicated for staffed (BUFRs) and automated (BUFRa) stations. The indicated value can be found in the BUFR Table referenced below. Defined values are: Range BUFRa BUFRs Meaning 1 other 2 unknown 3 no precipitation 4 unidentified slight 5 unidentified moderate 6 unidentified heavy 7 171 85 snow slight 8 172 86 snow moderate 9 173 86 snow heavy 10 61 rain slight 11 165 63 rain moderate 12 163 65 rain heavy 13 frozen precipitation slight 14 frozen precipitation moderate 15 frozen precipitation heavy.</Definition>
Application Data other (1) unknown (2) noPrecipitation (3) unidentifiedSlight (4) unidentifiedModerate (5) unidentifiedHeavy (6) snowSlight (7) snowModerate (8) snowHeavy (9) rainSlight (10) rainModerate (11) rainHeavy (12) frozenPrecipitationSlight (13) frozenPrecipitationModerate (14) frozenPrecipitationHeavy (15)

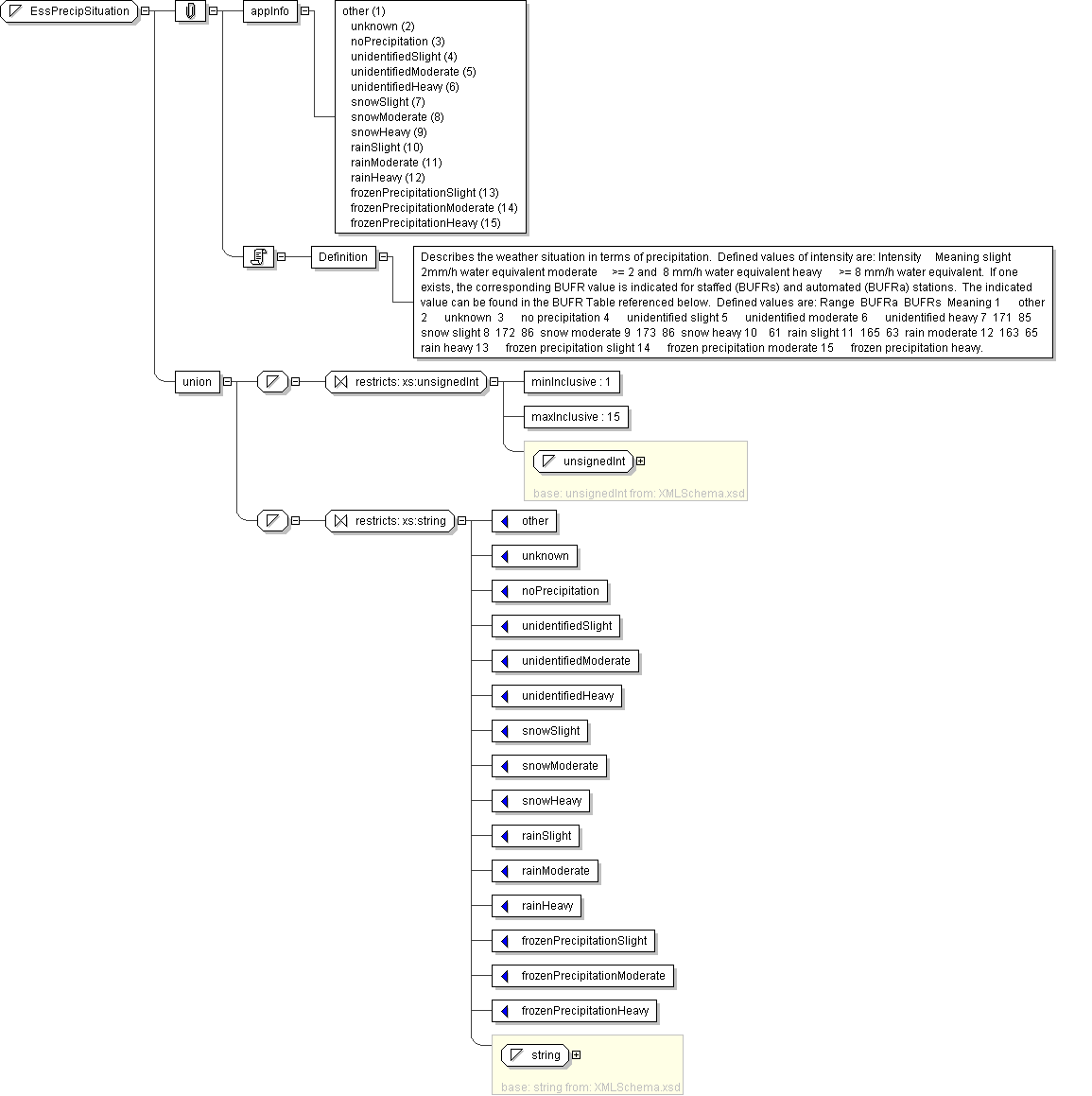

Diagram
Schema Component Representation
<xs:simpleType name="EssPrecipSituation">
<xs:union>
<xs:simpleType>
<xs:restriction base=" xs:unsignedInt ">
<xs:minInclusive value="1"/>
<xs:maxInclusive value="15"/>
</xs:restriction>
</xs:simpleType>
<xs:simpleType>
<xs:restriction base=" xs:string ">
<xs:enumeration value="other"/>
<xs:enumeration value="unknown"/>
<xs:enumeration value="noPrecipitation"/>
<xs:enumeration value="unidentifiedSlight"/>
<xs:enumeration value="unidentifiedModerate"/>
<xs:enumeration value="unidentifiedHeavy"/>
<xs:enumeration value="snowSlight"/>
<xs:enumeration value="snowModerate"/>
<xs:enumeration value="snowHeavy"/>
<xs:enumeration value="rainSlight"/>
<xs:enumeration value="rainModerate"/>
<xs:enumeration value="rainHeavy"/>
<xs:enumeration value="frozenPrecipitationSlight"/>
<xs:enumeration value="frozenPrecipitationModerate"/>
<xs:enumeration value="frozenPrecipitationHeavy"/>
</xs:restriction>
</xs:simpleType>
</xs:union>
</xs:simpleType>
