Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

Name	PublicGrid
Used by (from the same schema document)	Complex Type LocationReference , Complex Type PointLocation
Abstract	no

XML Instance Representation

<...
locationID=" String-index64 [0..1]">

<locationName> Text-name255 </locationName> [0..1]

Start Choice [1]

<usng> PublicGridUSNG </usng> [1]

<localReference> PublicGridLocalReference </localReference> [1]

<statePlane> PublicGridStatePlane </statePlane> [1]

End Choice
</...>

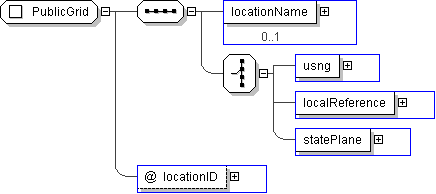

Diagram

Schema Component Representation

<xs:complexType name="PublicGrid">

<xs:sequence>

<xs:element name="locationName" type=" Text-name255 " minOccurs="0"/>

<xs:choice>

<xs:element name="usng" type=" PublicGridUSNG "/>

<xs:element name="localReference" type=" PublicGridLocalReference "/>

<xs:element name="statePlane" type=" PublicGridStatePlane "/>

</xs:choice>

</xs:sequence>

<xs:attribute name="locationID" type=" String-index64 "/>

</xs:complexType>
