Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

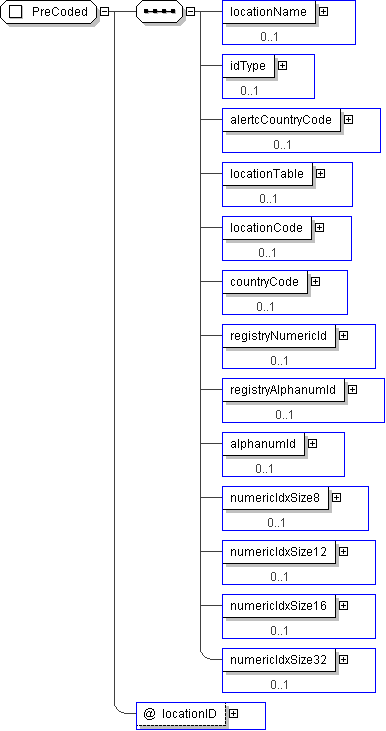

Name	PreCoded
Used by (from the same schema document)	Complex Type AreaLocation , Complex Type LinkLocation , Complex Type LocationReference
Abstract	no

XML Instance Representation

<...
locationID=" String-index64 [0..1]">

<locationName> Text-name255 </locationName> [0..1]

<idType> PreCodedIdType </idType> [0..1]

<alertcCountryCode> AlertCCountryCode </alertcCountryCode> [0..1]

<locationTable> LocationTable </locationTable> [0..1]

<locationCode> LocationCode </locationCode> [0..1]

<countryCode> CountryCode </countryCode> [0..1]

<registryNumericId> Int-index16 </registryNumericId> [0..1]

<registryAlphanumId> Text-name255 </registryAlphanumId> [0..1]

<alphanumId> String-index64 </alphanumId> [0..1]

<numericIdxSize8> NumericIDXSize8 </numericIdxSize8> [0..1]

<numericIdxSize12> NumericIDXSize12 </numericIdxSize12> [0..1]

<numericIdxSize16> NumericIDXSize16 </numericIdxSize16> [0..1]

<numericIdxSize32> NumericIDXSize32 </numericIdxSize32> [0..1]

</...>

Schema Component Representation

<xs:complexType name="PreCoded">

<xs:sequence>

<xs:element name="locationName" type=" Text-name255 " minOccurs="0"/>

<xs:element name="idType" type=" PreCodedIdType " minOccurs="0"/>

<xs:element name="alertcCountryCode" type=" AlertCCountryCode " minOccurs="0"/>

<xs:element name="locationTable" type=" LocationTable " minOccurs="0"/>

<xs:element name="locationCode" type=" LocationCode " minOccurs="0"/>

<xs:element name="countryCode" type=" CountryCode " minOccurs="0"/>

<xs:element name="registryNumericId" type=" Int-index16 " minOccurs="0"/>

<xs:element name="registryAlphanumId" type=" Text-name255 " minOccurs="0"/>

<xs:element name="alphanumId" type=" String-index64 " minOccurs="0"/>

<xs:element name="numericIdxSize8" type=" NumericIDXSize8 " minOccurs="0"/>

<xs:element name="numericIdxSize12" type=" NumericIDXSize12 " minOccurs="0"/>

<xs:element name="numericIdxSize16" type=" NumericIDXSize16 " minOccurs="0"/>

<xs:element name="numericIdxSize32" type=" NumericIDXSize32 " minOccurs="0"/>

</xs:sequence>

<xs:attribute name="locationID" type=" String-index64 "/>

</xs:complexType>
