Documentation for ATIS-Draft-03-00-79

Complex Type: Angle

[Table of contents]

Super-types: None
Sub-types: None
Name Angle
Used by (from the same schema document) Complex Type PolarCoordinates
Abstract no
XML Instance Representation
<...>
Start Choice [1]
<deg> xs:decimal (0 <= value <= 360) </deg> [1]
<rad> xs:decimal (0 <= value <= 6.2832) </rad> [1]
<cdeg> xs:unsignedShort (value <= 36000) </cdeg> [1]
End Choice
</...>

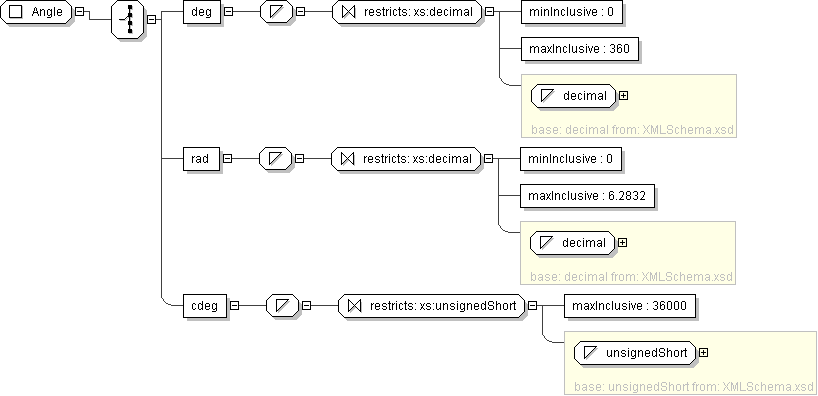

Diagram
Schema Component Representation
<xs:complexType name="Angle">
<xs:choice>
<xs:element name="deg">
<xs:simpleType>
<xs:restriction base=" xs:decimal ">
<xs:minInclusive value="0"/>
<xs:maxInclusive value="360"/>
</xs:restriction>
</xs:simpleType>
</xs:element>
<xs:element name="rad">
<xs:simpleType>
<xs:restriction base=" xs:decimal ">
<xs:minInclusive value="0"/>
<xs:maxInclusive value="6.2832"/>
</xs:restriction>
</xs:simpleType>
</xs:element>
<xs:element name="cdeg">
<xs:simpleType>
<xs:restriction base=" xs:unsignedShort ">
<xs:maxInclusive value="36000"/>
</xs:restriction>
</xs:simpleType>
</xs:element>
</xs:choice>
</xs:complexType>
