Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

Name	AlternateRoute
Used by (from the same schema document)	Complex Type ITISEventType
Content	Union of following types: Locally defined type: Base XSD Type: unsignedInt 8448 <= value <= 8703 Locally defined type: Base XSD Type: string value comes from list: {'detour where possible'\|'no detour available'\|'follow signs'\|'follow detour signs'\|'follow special detour markers'\|'do not follow detour signs'\|'detour in operation'\|'follow local detour'\|'compulsory detour in operation'\|'no suitable detour available'\|'detour is no longer recommended'\|'local drivers are recommended to avoid the area'\|'trucks are recommended to avoid the area'\|'consider alternate route'\|'consider alternate parking'\|'consider alternate destination'\|'consider alternate area'} Locally defined type: Base XSD Type: string pattern = \[.+\].* Locally defined type: Base XSD Type: string value comes from list: {'insert-local-values-here'}

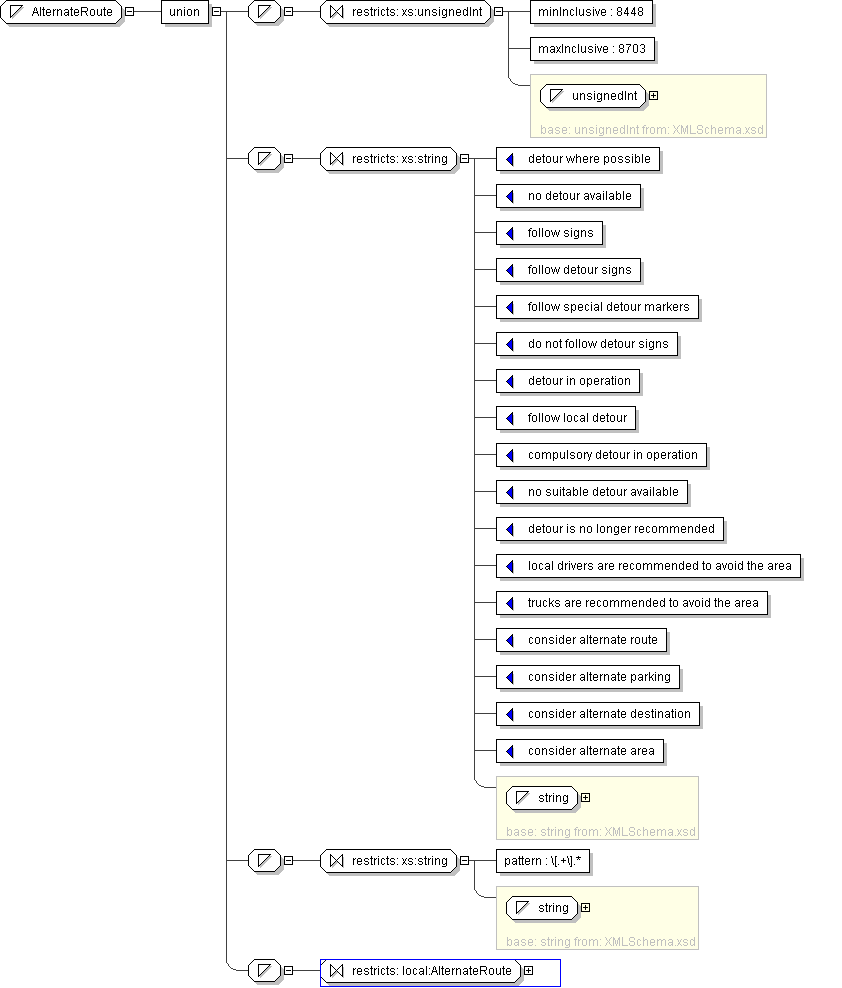

Schema Component Representation

<xs:simpleType name="AlternateRoute">

<xs:union>

<xs:simpleType>

<xs:restriction base=" xs:unsignedInt ">

<xs:minInclusive value="8448"/>

<xs:maxInclusive value="8703"/>

</xs:restriction>

</xs:simpleType>

<xs:simpleType>

<xs:restriction base=" xs:string ">

<xs:enumeration value="detour where possible" id="_8449"/>

<xs:enumeration value="no detour available" id="_8450"/>

<xs:enumeration value="follow signs" id="_8451"/>

<xs:enumeration value="follow detour signs" id="_8452"/>

<xs:enumeration value="follow special detour markers" id="_8453"/>

<xs:enumeration value="do not follow detour signs" id="_8454"/>

<xs:enumeration value="detour in operation" id="_8455"/>

<xs:enumeration value="follow local detour" id="_8456"/>

<xs:enumeration value="compulsory detour in operation" id="_8457"/>

<xs:enumeration value="no suitable detour available" id="_8458"/>

<xs:enumeration value="detour is no longer recommended" id="_8459"/>

<xs:enumeration value="local drivers are recommended to avoid the area" id="_8460"/>

<xs:enumeration value="trucks are recommended to avoid the area" id="_8461"/>

<xs:enumeration value="consider alternate route" id="_8462"/>

<xs:enumeration value="consider alternate parking" id="_8463"/>

<xs:enumeration value="consider alternate destination" id="_8464"/>

<xs:enumeration value="consider alternate area" id="_8465"/>

</xs:restriction>

</xs:simpleType>

<xs:simpleType>

<xs:restriction base=" xs:string ">

<xs:pattern value="\[.+\].*"/>

</xs:restriction>

</xs:simpleType>

<xs:simpleType>

<xs:restriction base=" local:AlternateRoute "/>

</xs:simpleType>

</xs:union>

</xs:simpleType>
