Documentation for ATIS-Draft-03-00-79

Simple Type: LaneRoadway

[Table of contents]

Super-types: None
Sub-types: None
Name LaneRoadway
Used by (from the same schema document) Complex Type ITISEventType
Content
  • Union of following types:
    • Locally defined type:
      • Base XSD Type: unsignedInt
      • 8192 <= value <= 8447
    • Locally defined type:
      • Base XSD Type: string
      • value comes from list: {'all roadways'|'through lanes'|'left lane'|'right lane'|'center lane'|'middle lanes'|'middle two lanes'|'right turning lanes'|'left turning lanes'|'upper deck lanes'|'lower deck lanes'|'reversible lanes'|'right exit lanes'|'left exit lanes'|'right merging lanes'|'left merging lanes'|'right exit ramp'|'right second exit ramp'|'right entrance ramp'|'right second entrance ramp'|'left exit ramp'|'left second exit ramp'|'left entrance ramp'|'left second entrance ramp'|'escape ramp'|'hard shoulder'|'soft shoulder'|'right shoulder'|'left shoulder'|'highways'|'right hand parallel lanes'|'left hand parallel lanes'|'connecting lanes'|'express lanes'|'local lanes'|'toll lanes'|'electronic toll lanes'|'toll plaza'|'inspection lane'|'hOV lanes'|'bus lanes'|'carpool lanes'|'truck lanes'|'emergency lanes'|'passing lanes'|'climbing lanes'|'slow lane'|'service road'|'cycle lane'|'bridge'|'overpass'|'elevated lanes'|'underpass'|'tunnel'}
    • Locally defined type:
      • Base XSD Type: string
      • pattern = \[.+\].*
    • Locally defined type:
      • Base XSD Type: string
      • value comes from list: {'insert-local-values-here'}

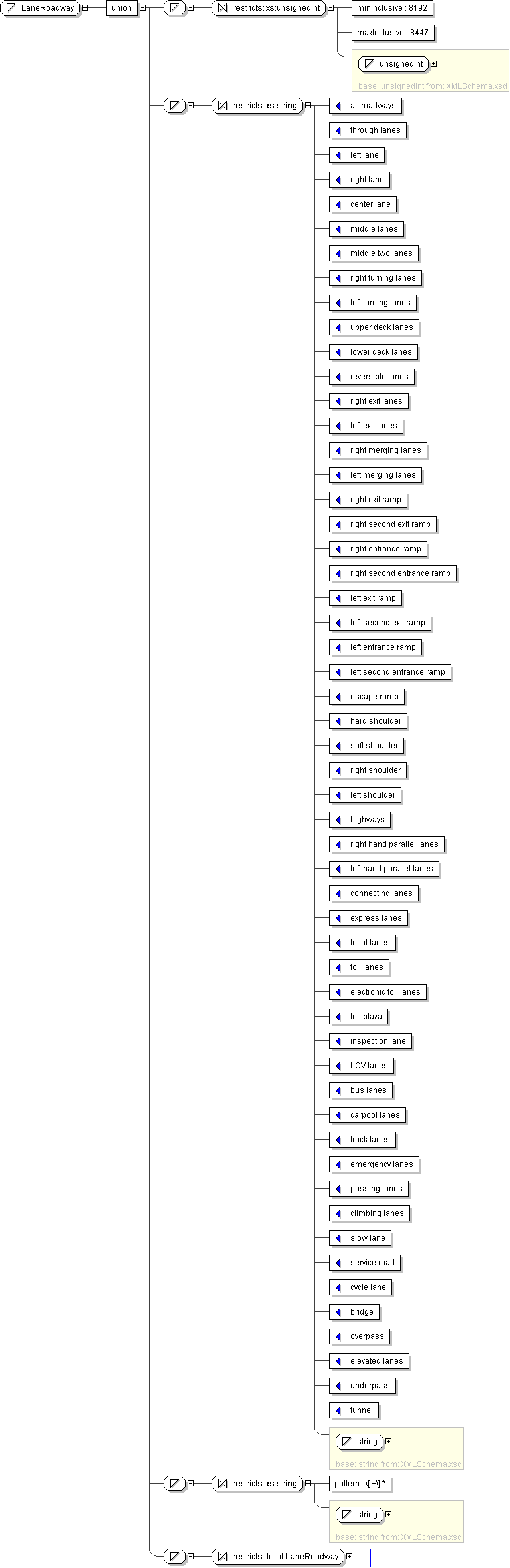

Diagram
h-1642444130
Schema Component Representation
<xs:simpleType name="LaneRoadway">
<xs:union>
<xs:simpleType>
<xs:restriction base=" xs:unsignedInt ">
<xs:minInclusive value="8192"/>
<xs:maxInclusive value="8447"/>
</xs:restriction>
</xs:simpleType>
<xs:simpleType>
<xs:restriction base=" xs:string ">
<xs:enumeration value="all roadways" id="_8193"/>
<xs:enumeration value="through lanes" id="_8194"/>
<xs:enumeration value="left lane" id="_8195"/>
<xs:enumeration value="right lane" id="_8196"/>
<xs:enumeration value="center lane" id="_8197"/>
<xs:enumeration value="middle lanes" id="_8198"/>
<xs:enumeration value="middle two lanes" id="_8199"/>
<xs:enumeration value="right turning lanes" id="_8200"/>
<xs:enumeration value="left turning lanes" id="_8201"/>
<xs:enumeration value="upper deck lanes" id="_8236"/>
<xs:enumeration value="lower deck lanes" id="_8237"/>
<xs:enumeration value="reversible lanes" id="_8238"/>
<xs:enumeration value="right exit lanes" id="_8239"/>
<xs:enumeration value="left exit lanes" id="_8240"/>
<xs:enumeration value="right merging lanes" id="_8241"/>
<xs:enumeration value="left merging lanes" id="_8242"/>
<xs:enumeration value="right exit ramp" id="_8202"/>
<xs:enumeration value="right second exit ramp" id="_8243"/>
<xs:enumeration value="right entrance ramp" id="_8203"/>
<xs:enumeration value="right second entrance ramp" id="_8245"/>
<xs:enumeration value="left exit ramp" id="_8204"/>
<xs:enumeration value="left second exit ramp" id="_8244"/>
<xs:enumeration value="left entrance ramp" id="_8205"/>
<xs:enumeration value="left second entrance ramp" id="_8246"/>
<xs:enumeration value="escape ramp" id="_8234"/>
<xs:enumeration value="hard shoulder" id="_8206"/>
<xs:enumeration value="soft shoulder" id="_8207"/>
<xs:enumeration value="right shoulder" id="_8208"/>
<xs:enumeration value="left shoulder" id="_8209"/>
<xs:enumeration value="highways" id="_8235"/>
<xs:enumeration value="right hand parallel lanes" id="_8210"/>
<xs:enumeration value="left hand parallel lanes" id="_8211"/>
<xs:enumeration value="connecting lanes" id="_8212"/>
<xs:enumeration value="express lanes" id="_8213"/>
<xs:enumeration value="local lanes" id="_8214"/>
<xs:enumeration value="toll lanes" id="_8215"/>
<xs:enumeration value="electronic toll lanes" id="_8216"/>
<xs:enumeration value="toll plaza" id="_8217"/>
<xs:enumeration value="inspection lane" id="_8218"/>
<xs:enumeration value="hOV lanes" id="_8219"/>
<xs:enumeration value="bus lanes" id="_8220"/>
<xs:enumeration value="carpool lanes" id="_8221"/>
<xs:enumeration value="truck lanes" id="_8222"/>
<xs:enumeration value="emergency lanes" id="_8223"/>
<xs:enumeration value="passing lanes" id="_8224"/>
<xs:enumeration value="climbing lanes" id="_8225"/>
<xs:enumeration value="slow lane" id="_8226"/>
<xs:enumeration value="service road" id="_8227"/>
<xs:enumeration value="cycle lane" id="_8228"/>
<xs:enumeration value="bridge" id="_8229"/>
<xs:enumeration value="overpass" id="_8230"/>
<xs:enumeration value="elevated lanes" id="_8231"/>
<xs:enumeration value="underpass" id="_8232"/>
<xs:enumeration value="tunnel" id="_8233"/>
</xs:restriction>
</xs:simpleType>
<xs:simpleType>
<xs:restriction base=" xs:string ">
<xs:pattern value="\[.+\].*"/>
</xs:restriction>
</xs:simpleType>
<xs:simpleType>
<xs:restriction base=" local:LaneRoadway "/>
</xs:simpleType>
</xs:union>
</xs:simpleType>
